Toyota Sienna Service Manual: Problem symptoms table

HINT:

When a malfunction is not confirmed by a DTC (Diagnostic Trouble Code) check and the cause of problem cannot be identified through a basic inspection, troubleshoot according to the priority order indicated in the table below.

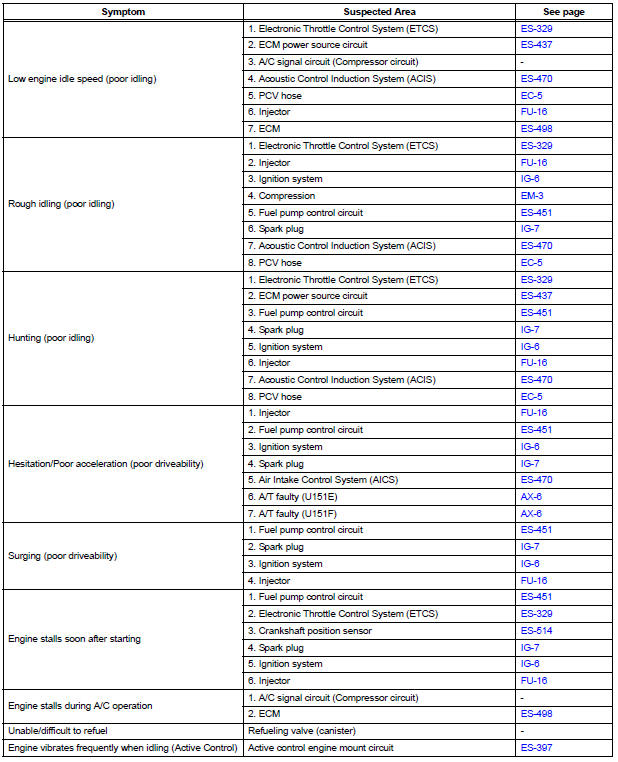

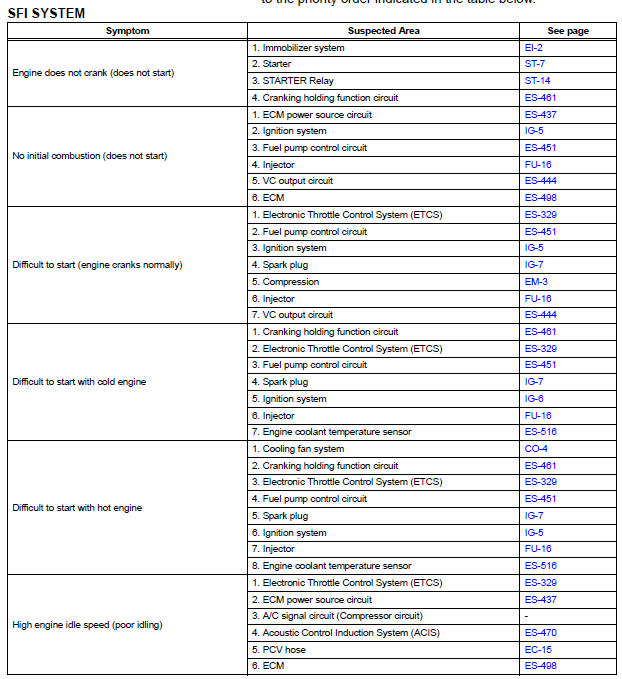

Problem symptoms table

Problem symptoms table

Air-fuel ratio (a/f) and heated oxygen (ho2) sensor heater monitors (front a/f and rear ho2 sensor type)
(a) Preconditions The monitor will not run unless: The MIL is OFF. (b) Drive Pattern (1) Connect an intelligent tester to the DLC3. (2) Turn the ignition switch to the ON position. (3 ...

Terminals of ecm
Sfi system Hint: The standard normal voltage between each pair of the ECM terminals is shown in the table below. The appropriate conditions for checking each pair of the terminals are also indi ...
