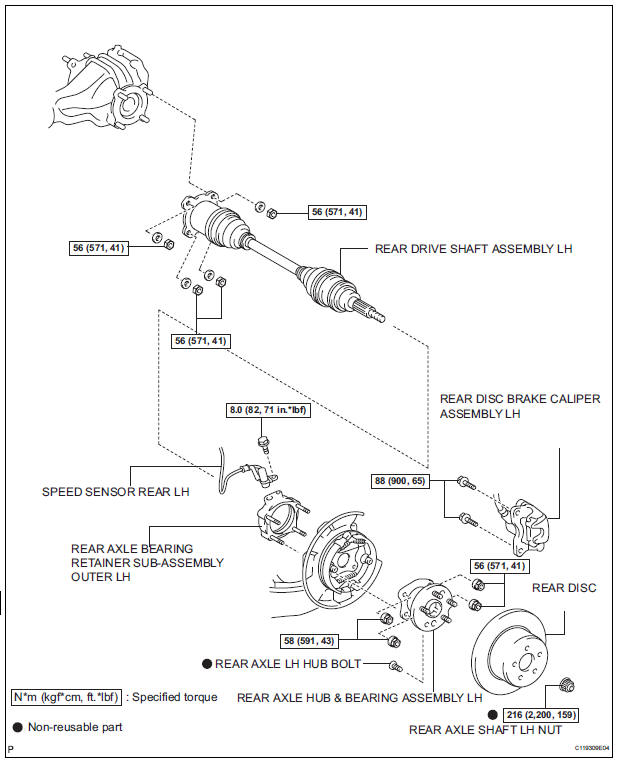

COMPONENTS

Rear axle hub and bearing (for 4wd)

Installation
1. INSTALL REAR AXLE HUB & BEARING ASSEMBLY LH (a) Install the hub & Bearing assembly LH with the 4 bolts. Torque: 56 N*m (571 kgf*cm, 41 ft.*lbf) 2. INSPECT BEARING BACKLASH (See page ...

On-vehicle inspection
1. INSPECT REAR AXLE HUB BEARING BACKLASH (a) Using a dial gauge, check for backlash near the center of the axle hub. Maximum: 0.05 mm (0.0020 in.) If backlash exceeds the maximum, replace th ...
