Toyota Sienna Service Manual: Rear center seat outer belt assembly

Toyota Sienna Service Manual / Seat belt / Rear center seat outer belt assembly

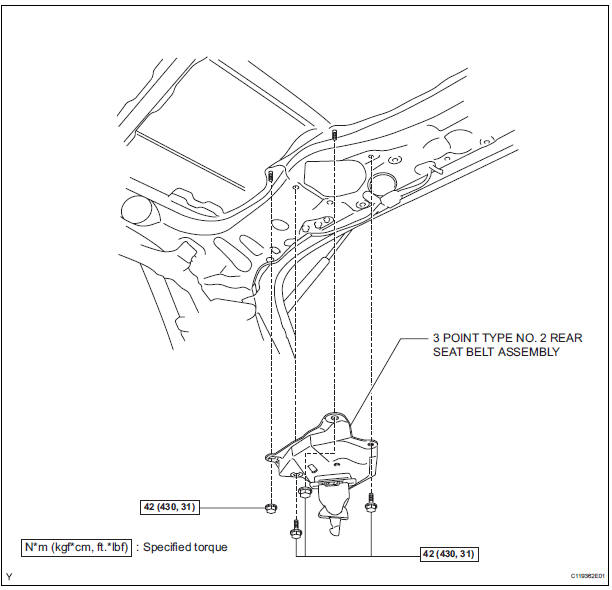

COMPONENTS

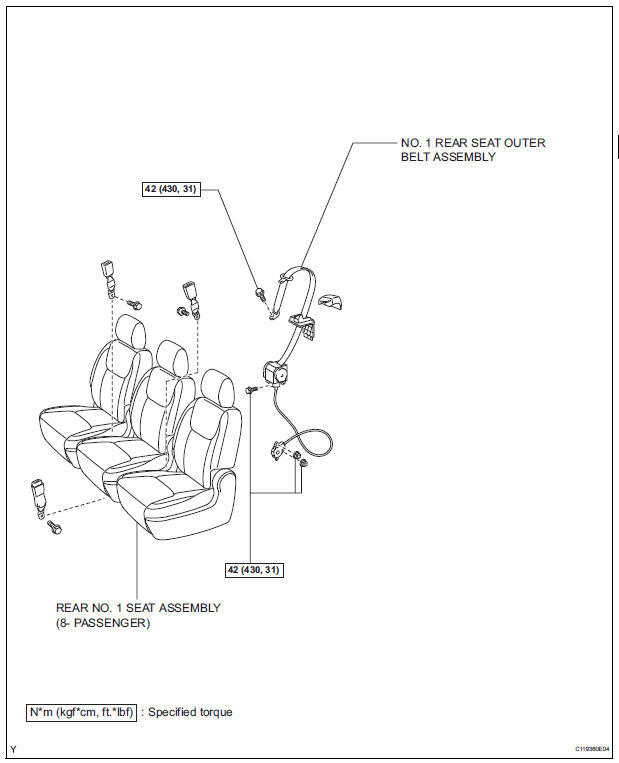

COMPONENTS

COMPONENTS

Installation
1. INSTALL CENTER REAR SEAT LAP TYPE BELT ASSEMBLY (for 8-Passenger) HINT: Refer to the instructions for reassembly of the rear No. 1 seat assembly (for center seat).  Install the center ...

Removal
1. REMOVE NO. 1 REAR SEAT OUTER BELT ASSEMBLY (for 8-Passenger) HINT: Refer to the instructions for disassembly of the rear No .1 seat assembly (for center seat). Remove the rear seatback boar ...
