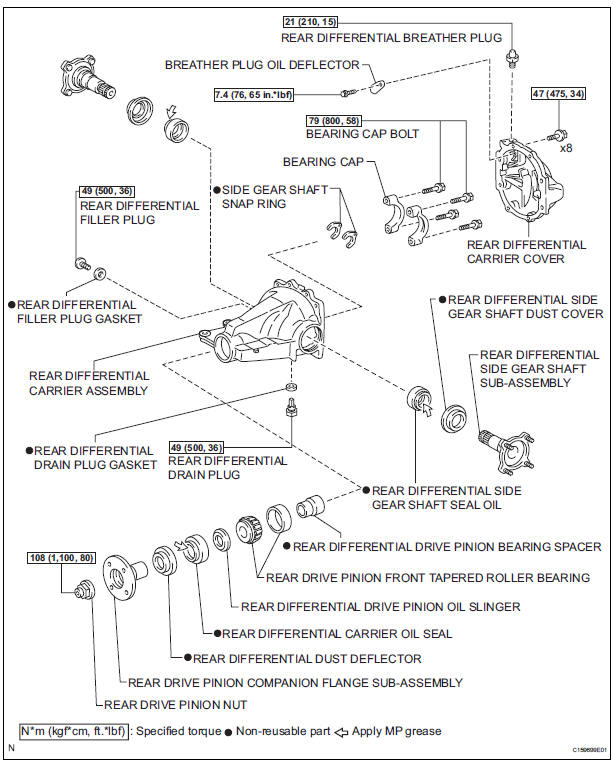

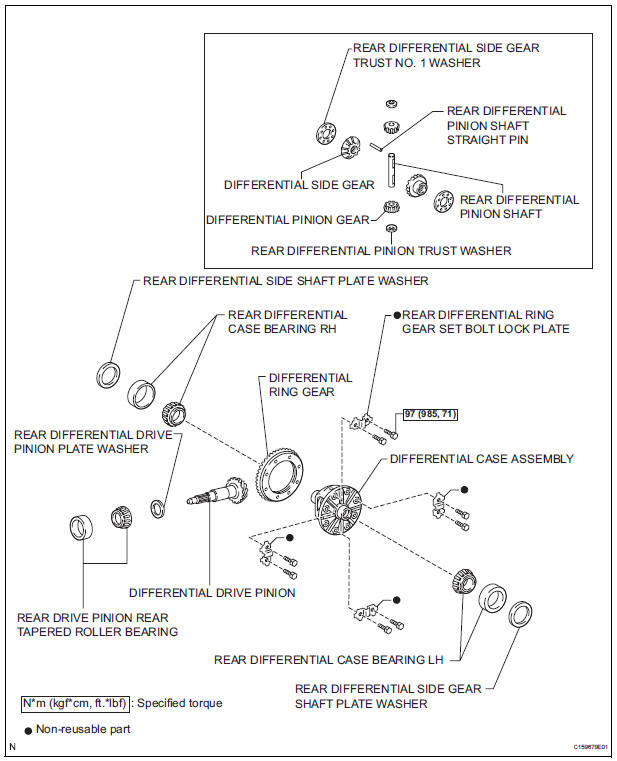

COMPONENTS

Rear differential carrier

Rear differential carrier

Installation
1. INSTALL NO. 1 REAR DIFFERENTIAL SUPPORT (a) Install the No. 1 rear differential support to the rear differential carrier assembly with the 2 bolts and 2 nuts. Torque: 85 N*m (867 kgf*cm, 63 ...

Disassembly
1. REMOVE REAR DIFFERENTIAL CARRIER COVER (a) Remove the 8 bolts from the carrier cover. (b) Using a brass bar and a hammer, separate the carrier cover from rear differential carrier assembly ...
