Toyota Sienna Service Manual: Rear door glass weatherstrip

Toyota Sienna Service Manual / Exterior / Rear door glass weatherstrip

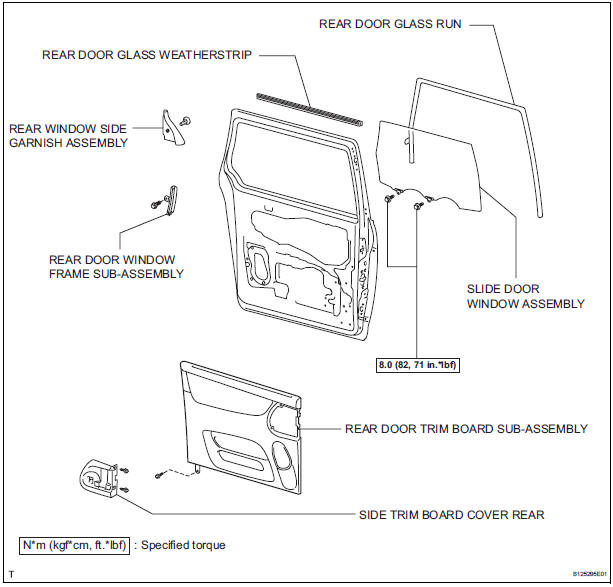

COMPONENTS

COMPONENTS

Installation
1. INSTALL FRONT DOOR GLASS WEATHERSTRIP Install the front door grass weatherstrip. 2. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY (See page MI-45) 3. INSTALL FRONT DOOR TRIM BOARD SUBASSEMBLY 4 ...

Removal
1. REMOVE REAR WINDOW SIDE GARNISH ASSEMBLY 2. REMOVE REAR DOOR WINDOW FRAME SUBASSEMBLY 3. REMOVE SIDE TRIM BOARD COVER REAR 4. REMOVE REAR DOOR TRIM BOARD SUBASSEMBLY 5. REMOVE REAR DOOR GLAS ...
