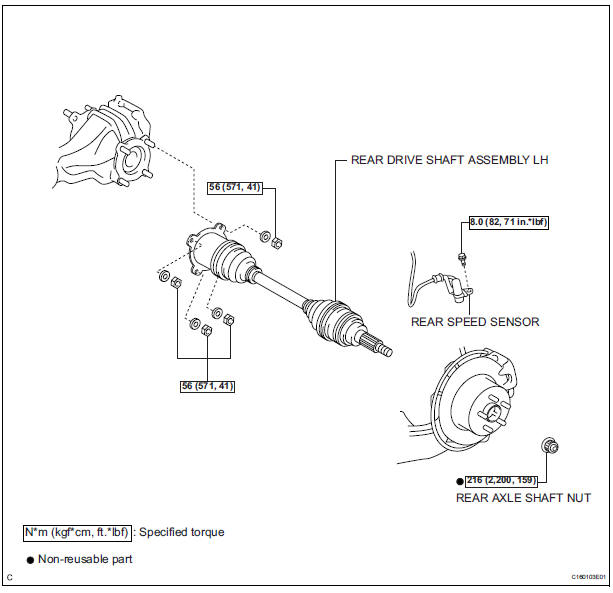

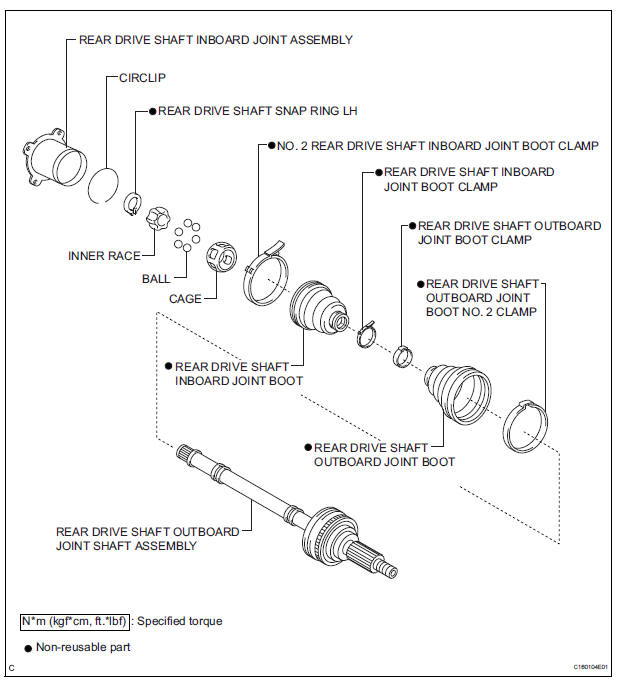

COMPONENTS

Rear drive shaft (for 4wd)

Rear drive shaft (for 4wd)

Installation
1. INSTALL FRONT DRIVE SHAFT ASSEMBLY LH (a) Coat the spline of the inboard joint shaft assembly with ATF. (b) Align the shaft splines and install the drive shaft assembly with a brass bar a ...

Removal
1. REMOVE REAR WHEEL 2. REMOVE TAIL EXHAUST PIPE ASSEMBLY (See page EX-8) 3. SEPARATE REAR SPEED SENSOR (a) Remove the bolt and the speed sensor from the axle carrier. NOTICE: Be careful not ...
