Toyota Sienna Service Manual: Rear no. 1 Seat assembly (for Captain Seat Type)

Toyota Sienna Service Manual / Seat / Rear no. 1 Seat assembly (for Captain Seat Type)

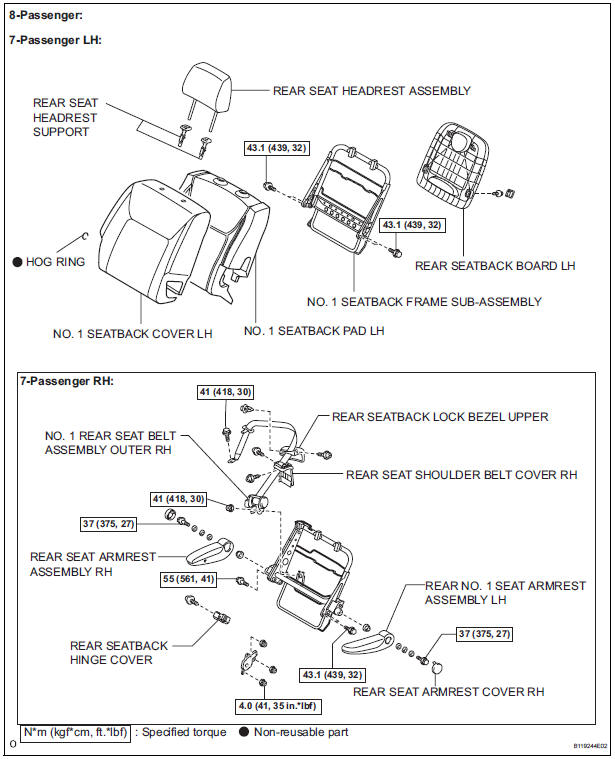

COMPONENTS

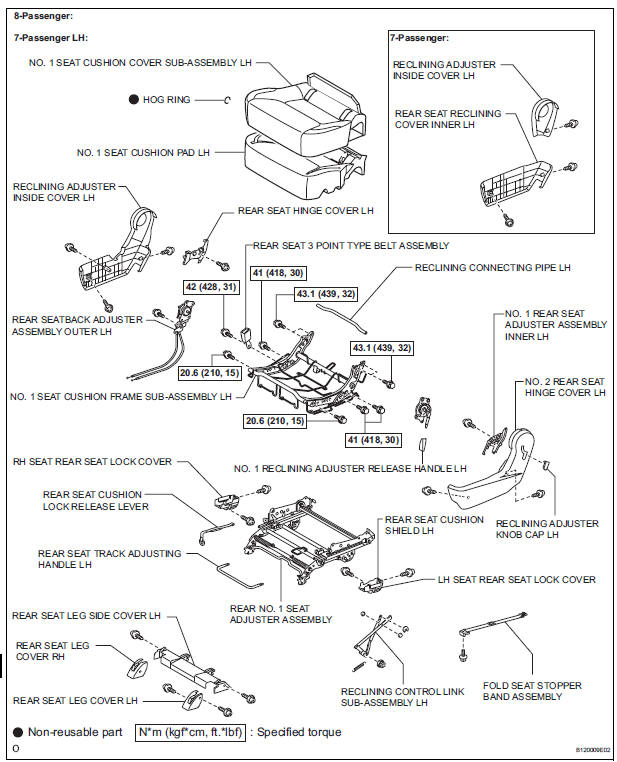

COMPONENTS

COMPONENTS

Installation
1. INSTALL FRONT SEAT ASSEMBLY LH  Place the seat assembly in the cabin. NOTICE: Be careful not to damage the body.  Connect the connectors under the seat assembly.  T ...

Removal
HINT: On the RH side, use the same procedures as on the LH side. 1. REMOVE REAR NO. 1 SEAT ASSEMBLY LH  Remove the headrest.  7-Passenger RH: Remove the bolt and seat belt anchor p ...
