Toyota Sienna Service Manual: Rear no. 2 Seat assembly (for Manual Seat Type RH Side)

Toyota Sienna Service Manual / Seat / Rear no. 2 Seat assembly (for Manual Seat Type RH Side)

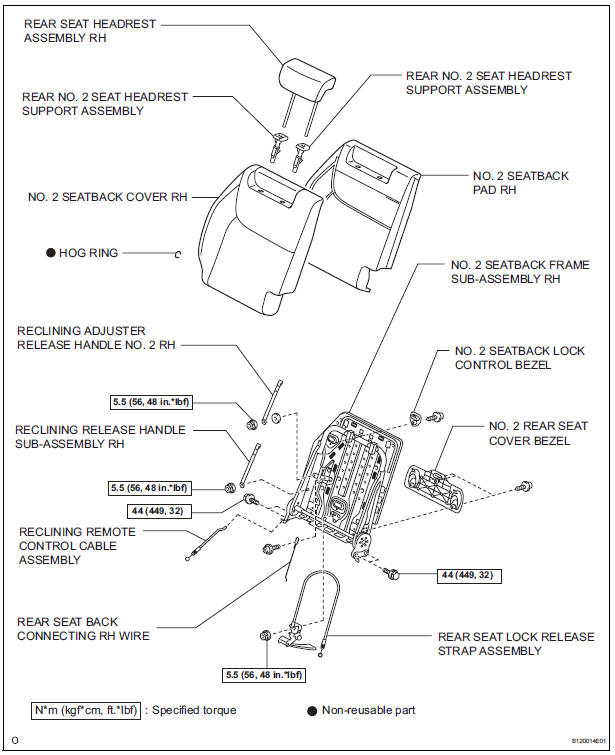

COMPONENTS

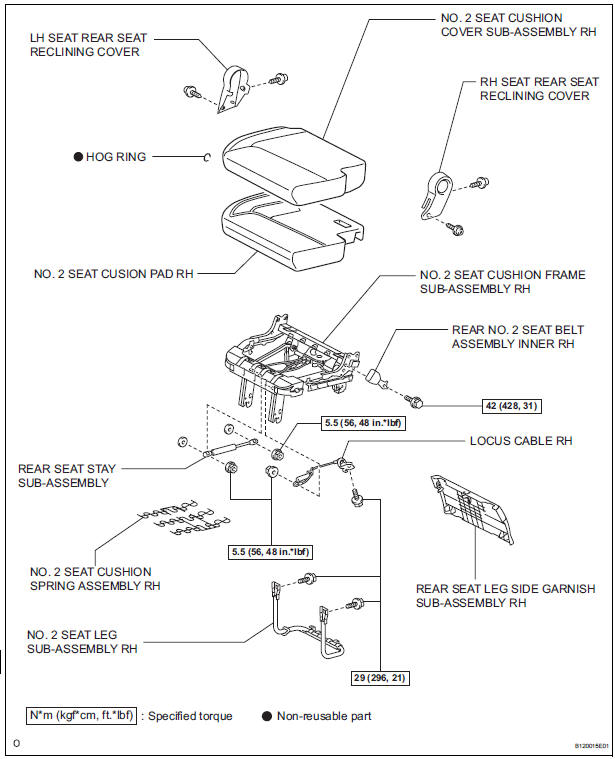

COMPONENTS

COMPONENTS

Installation
1. INSTALL REAR NO. 2 SEAT ASSEMBLY LH  Place the rear No. 2 seat assembly LH in the cabin. NOTICE: Be careful not to damage the body.  Install the rear No. 2 seat assembly LH wi ...

Removal
1. REMOVE REAR SEAT LEG SIDE GARNISH SUBASSEMBLY RH  Disengage the clips and remove the seat leg side garnish sub-assembly RH. 2. REMOVE REAR NO. 2 SEAT ASSEMBLY RH  Remove ...
