Toyota Sienna Service Manual: Rear speed sensor (for 2wd)

Toyota Sienna Service Manual / Brake control / Rear speed sensor (for 2wd)

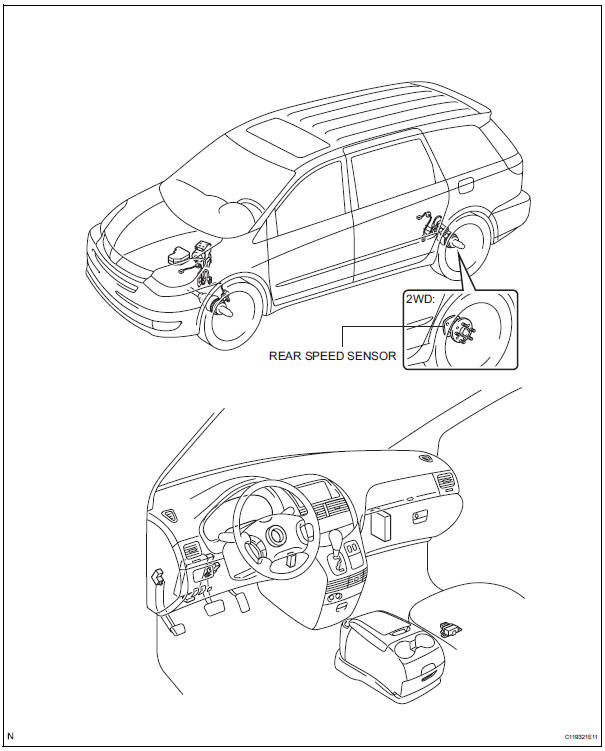

Components

Rear speed sensor (for 2wd)

Installation
HINT: Install the RH side by the same procedures with LH side. 1. INSTALL FRONT SPEED SENSOR LH (a) Install the speed sensor front LH with the bolt. Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf) NO ...

Removal
HINT: Remove the RH by the same procedure as the LH side. 1. REMOVE REAR WHEEL 2. SEPARATE SKID CONTROL SENSOR WIRE (a) Disconnect the connector from the skid control sensor. 3. REMOVE REAR ...
