Toyota Sienna 2010-2018 Owners Manual: Releasing and stowing the seat belt (for the third center seat)

Toyota Sienna 2010-2018 Owners Manual / For safety and security / For safe use / Seat belts / Releasing and stowing the seat belt (for the third center seat)

Toyota Sienna. Releasing and stowing the seat belt

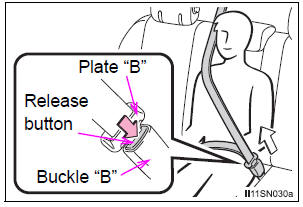

  1. To release plate “B”, press the release button on buckle “B”.

Toyota Sienna. Releasing and stowing the seat belt

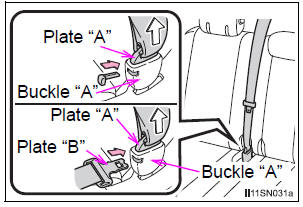

  1. To release plate “A”, insert the key or plate “B” into the hole on buckle “A”.

    Retract the belt slowly when releasing and stowing the seat belt.

Toyota Sienna. Releasing and stowing the seat belt

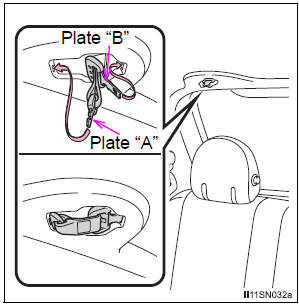

  1. Insert the seat belt plates into the holder on the roof as shown.
