Toyota Sienna Service Manual: Removal

1. REMOVE FRONT FENDER LINER LH

2. REMOVE FRONT FENDER LINER RH

3. REMOVE FRONT BUMPER COVER

4. REMOVE FRONT BUMPER ENERGY ABSORBER

5. REMOVE FRONT BUMPER REINFORCEMENT SUBASSEMBLY

6. REMOVE LASER SENSOR

REMOVE LASER SENSOR

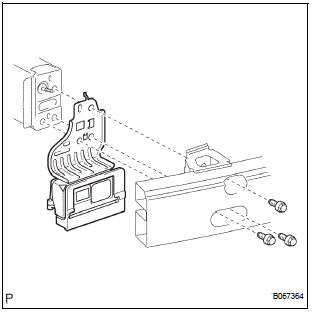

  1.  Disconnect the connector and remove the laser the sensor.
Laser sensor
COMPONENTS ...

Adjustment
CAUTION:  Do not stare at the luminous portion of the laser during adjustment. The intensity of the laser light is low, but it may result in loss of sight.  If operation is not car ...
