1. REMOVE ROOF CONSOLE BOX ASSEMBLY

2. REMOVE ACCESSORY METER ASSEMBLY

REMOVE ACCESSORY METER ASSEMBLY

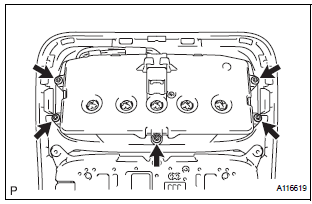

  1.  Using torx socket wrench (T10), remove the 5 screws and accessory meter assembly.
Calibration
1. SELECT COMPASS DISPLAY MODE  The MODE switch allows you to select the Display or Non-display mode of the compass. HINT: In compass display mode, the display indicates outside temper ...

Installation
1. INSTALL ACCESSORY METER ASSEMBLY  Using torx socket wrench (T10), install the accessory meter assembly with the 5 screws. 2. INSTALL ROOF CONSOLE BOX ASSEMBLY ...
