Toyota Sienna Service Manual: Removal

1. REMOVE ACCELERATOR PEDAL ROD

REMOVE ACCELERATOR PEDAL ROD

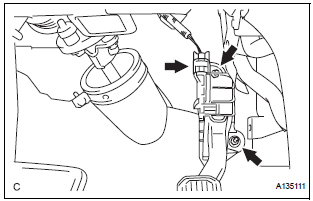

  1.  Disconnect the accelerator pedal position sensor connector.
  2.  Remove the 2 nuts and accelerator pedal rod.
On-vehicle inspection
1. CHECK ACCELERATOR PEDAL ROD  Check the voltage.  Connect the intelligent tester to the DLC3.  Turn the ignition switch to the ON position. Turn the intelligent test ...

Installation
1. INSTALL ACCELERATOR PEDAL ROD NOTICE:  Avoid physical shock to the accelerator pedal assembly.  Do not disassemble the accelerator pedal assembly.  Install the a ...
