Toyota Sienna Service Manual: Removal

1. REMOVE COMPRESSOR AND MAGNETIC CLUTCH

REMOVE COMPRESSOR AND MAGNETIC CLUTCH

2. REMOVE CRANKSHAFT POSITION SENSOR

  1.  Disconnect the crankshaft position sensor connector.
  2.  Remove the bolt, and then remove the crankshaft position sensor.

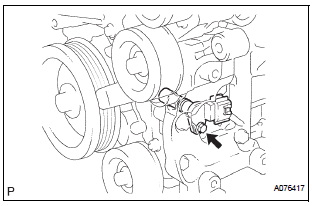

Crankshaft position sensor
COMPONENTS ...

Inspection
1. INSPECT CRANKSHAFT POSITION SENSOR  Using an ohmmeter, measure the resistance between the terminals. Standard resistance NOTICE:  "Cold" and "Hot" ...
