Toyota Sienna Service Manual: Removal

1. REMOVE REAR SEAT LEG SIDE GARNISH SUBASSEMBLY LH

REMOVE REAR SEAT LEG SIDE GARNISH SUBASSEMBLY LH

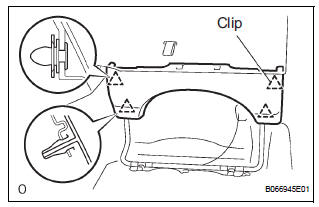

  1.  Disengage the clips and remove the seat leg side garnish.

2. REMOVE REAR NO. 2 SEAT ASSEMBLY LH

  1. Remove the bolt and locus cable.
  2.  Remove the 2 bolts and seat.
  3.  Remove the 2 headrests.
Rear no. 2 Seat assembly (for Manual Seat Type LH Side)
COMPONENTS ...

Disassembly
1. REMOVE RH SEAT REAR SEAT RECLINING COVER  Remove the 2 screws.  Remove the RH seat rear seat reclining cover by pulling it out in the arrow mark direction shown in the illus ...
