Toyota Sienna Service Manual: Removal

1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH

2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY

4. REMOVE FRONT DOOR TRIM BOARD SUBASSEMBLY LH

5. REMOVE SEAT MEMORY SWITCH

REMOVE SEAT MEMORY SWITCH

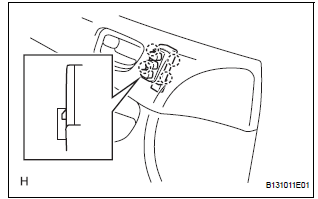

  1.  Disengage the 4 claws and remove the seat memory switch.
Seat memory switch
COMPONENTS ...

Inspection
1. INSPECT SEAT MEMORY SWITCH  Measure the resistance according to the value(s) in the table below. Standard resistance If the result is not as specified, replace the switch. ...
