Toyota Sienna Service Manual: Removal

1. REMOVE V-BANK COVER SUB-ASSEMBLY (See page EM-28)

2. DISCONNECT VENTILATION HOSE

DISCONNECT VENTILATION HOSE

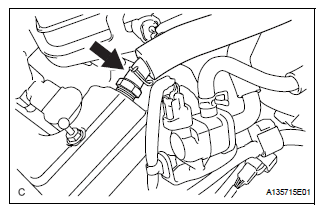

(a) Disconnect the ventilation hose from the ventilation valve.

3. REMOVE VENTILATION VALVE

REMOVE VENTILATION VALVE

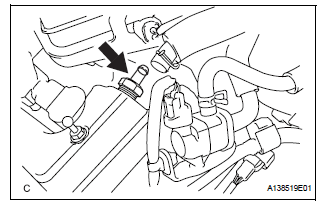

(a) Remove the ventilation valve.

Ventilation valve
Components ...

Inspection
1. INSPECT VENTILATION VALVE (a) Install a clean hose to the ventilation valve. (b) Check the ventilation valve operation. (1) Blow air into the cylinder head side, and check that air pass ...
