1. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
2. REMOVE HEATED OXYGEN SENSOR (for Bank 1 Sensor 2)
(a) Disconnect the sensor connector under the center console.

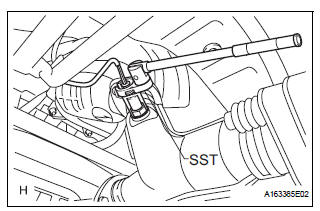

(b) Using SST, remove the heated oxygen sensor.
SST 09224-00010
3. REMOVE FRONT EXHAUST PIPE ASSEMBLY
(a) Disconnect the heated oxygen sensor (for Bank 2 Sensor 2) connector.

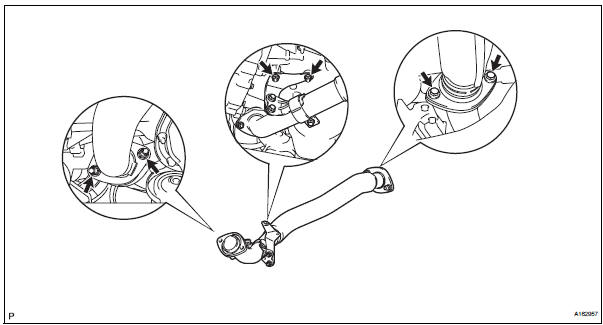

(b) Remove the 2 bolts, 4 nuts and front exhaust pipe assembly.
4. REMOVE HEATED OXYGEN SENSOR (for Bank 2 Sensor 2)

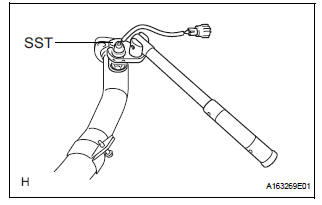

(a) Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly.
