Toyota Sienna 2010-2020 Owners Manual: Roof luggage carrier (if equipped)

Roof luggage carrier components

Toyota Sienna. Roof luggage carrier components


  1. Roof rails
  2. Cross rails

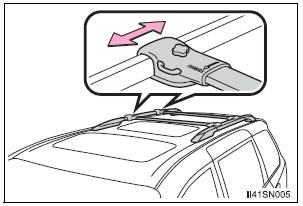

Adjusting the position of cross rails

Toyota Sienna. Adjusting the position of cross rails


  1. Turn the knobs counterclockwise to release the cross rails.

Toyota Sienna. Adjusting the position of cross rails


  1. Slide the cross rails to the appropriate position for loading luggage and turn the knobs clockwise to tighten the cross rails securely.
Calculation formula for your vehicle
Cargo capacity Total load capacity (vehicle capacity weight) When 2 people with the combined weight of A lb. (kg) are riding in your vehicle, which has a total load capacity (vehicle cap ...

Seating configuration variation
Cargo capacity Weight of the removed second seat If removing the second seats, it is possible to load extra cargo equal to the weight of the removed seats. (Cargo capacity) = (Total ...
