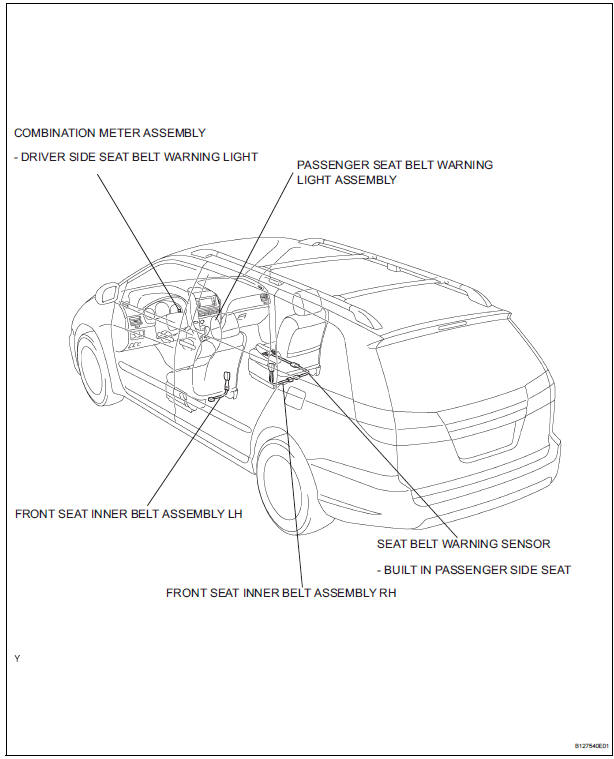

PARTS LOCATION

PARTS LOCATION

Problem symptoms table

SEAT BELT WARNING SYSTEM

Symptom

Suspected Area

Driver side seat belt waning light does not operate
  1. Fuse
  2. Combination meter
  3. Center airbag sensor assembly
  4. Front seat inner belt assembly
  5. Wire harness
Front passenger side seat belt warning light does not operate
  1. Fuse
  2. Passenger side seat belt warning light assembly
  3. Front seat inner belt assembly
  4. Wire harness
Seat belt
...

Front seat inner belt assembly
COMPONENTS ...
