Toyota Sienna Service Manual: Seat memory switch

Toyota Sienna Service Manual / Seat / Seat memory switch

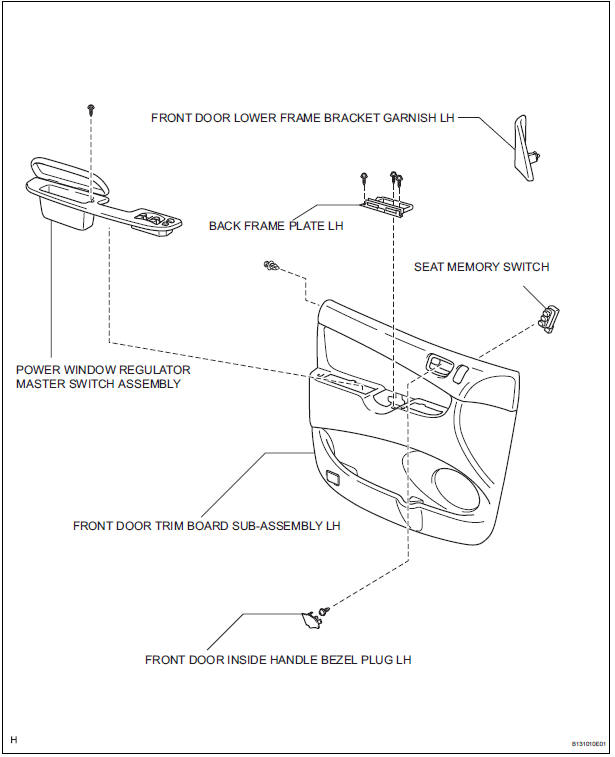

COMPONENTS

COMPONENTS

Fold Lock Switch Circuit
DESCRIPTION Each of the left and right seats has a fold lock switch that detects the lock condition of the seat legs and floor when the seat is in the stowed state. If the fold lock switch detects ...

Removal
1. REMOVE FRONT DOOR LOWER FRAME BRACKET GARNISH LH 2. REMOVE FRONT DOOR INSIDE HANDLE BEZEL PLUG LH 3. REMOVE POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY 4. REMOVE FRONT DOOR TRIM BOARD SUBASSEM ...

Other materials:

Short to GND in Driver Side Squib Circuit
DTC B0102/11 Short to GND in Driver Side Squib Circuit DESCRIPTION The driver side squib circuit consists of the center airbag sensor assembly, the spiral cable and the steering pad. The circuit instructs the SRS to deploy when deployment conditions are met. DTC B0102/11 is recorded when ...

Installation
1. INSTALL STEERING COLUMN ASSEMBLY (a) Install the steering column assembly with the 3 bolts. Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf) (b) Connect the connectors. (c) Connect the wire harness clamps to the steering column tube. 2. CONNECT STEERING INTERMEDIATE SHAFT ASSEMBLY (a) ...

No. 1 Clearance Warning Buzzer Circuit
DESCRIPTION The clearance warning ECU receives the ultrasonic sensor signal to sound the front warning buzzer. WIRING DIAGRAM INSPECTION PROCEDURE 1 INSPECT FRONT BUZZER Remove the clearance warning ECU with front buzzer.  Apply the battery voltage to the terminals 1 and 2 o ...
