Toyota Sienna Service Manual: Seat position sensor

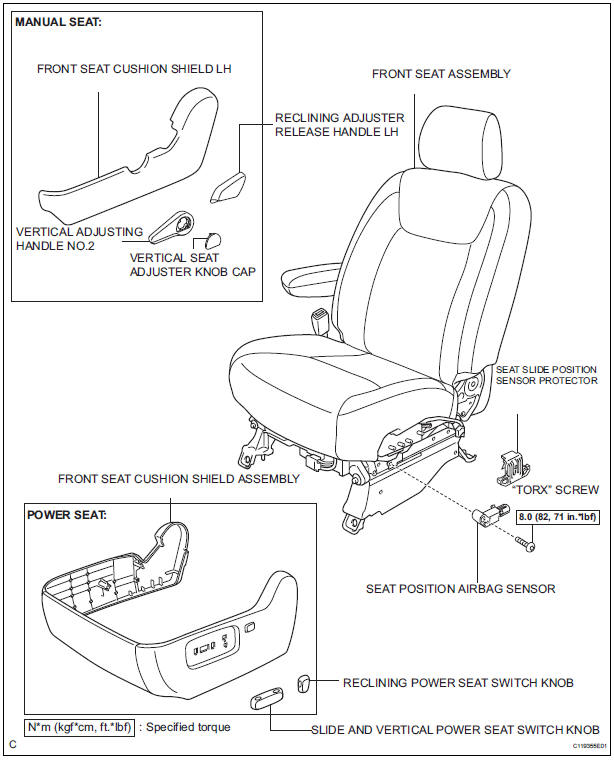

COMPONENTS

COMPONENTS

Installation
HINT:  Use the same procedures for the RH side and LH side.  The procedures listed below are for the LH side. 1. INSTALL REAR AIRBAG SENSOR LH  Check that the ignition ...

On-vehicle inspection
1. INSPECT SEAT POSITION SENSOR (VEHICLE NOT INVOLVED IN COLLISION)  Perform a diagnostic system check. 2. INSPECT SEAT POSITION SENSOR (VEHICLE INVOLVED IN COLLISION)  Perform ...
