Toyota Sienna 2010-2018 Owners Manual: Second center* and third center seats

Toyota Sienna. Second center* and third center seats

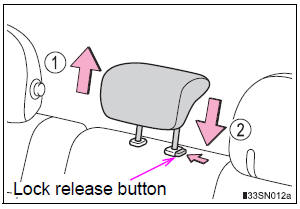

  1. Up
    Pull the head restraints up.
  2. Down
    Push the head restraint down while pressing the lock release button.

*: 8-passenger models only
