Toyota Sienna 2010-2021 Owners Manual: Setting up intuitive parking assist

You can change the buzzer sound volume and the screen operating conditions.

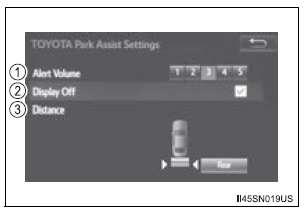

  1. Press the “APPS” button.
  2. Select “Setup” on the screen.
  3. Select “Vehicle” on the screen.
  4. Select “TOYOTA Park Assist Settings” on the screen.
  5. Select the desired item.

Toyota Sienna. Setting up intuitive parking assist


  1. The buzzer sound volume can be adjusted.
  2. On or off can be selected for intuitive parking assist display.
  3. Rear center sensor display and tone indication can be set.

The intuitive parking assist can be operated when

Intuitive parking assist display

When an obstacle is detected while the rear view monitor system is in use, the warning indicator will appear in the upper corner of the screen even if the display setting has been set to off.

Sensor detection information

In addition to the examples above, there are instances in which, because of their shapes, signs and other objects may be judged by the sensor to be closer than they are.

If the display flashes and a message is displayed

Certification (Canada only)

This ISM device complies with Canadian ICES-001.

WARNING

When using the Intuitive parking assist-sensor

Observe the following precautions.

Failure to do so may result in the vehicle being unable to be driven safely and possibly cause an accident.

  • Do not use the sensor at speeds in excess of 6 mph (10 km/h).
  • The sensors’ detection areas and reaction times are limited. When moving forward or reversing, check the areas surrounding the vehicle (especially the sides of the vehicle) for safety, and drive slowly, using the brake to control the vehicle’s speed.
  • Do not install accessories within the sensors’ detection areas.

NOTICE

When using intuitive parking assist

In the following situations, the system may not function correctly due to a sensor malfunction etc. Have the vehicle checked by your Toyota dealer.

  • The intuitive parking assist operation display flashes, and a beep sounds when no obstacles are detected.
  • If the area around a sensor collides with something, or is subjected to strong impact.
  • If the bumper collides with something.
  • If the display shows continuously without a beep.
  • If a display error occurs, first check the sensor.
  • If the error occurs even when there is no ice, snow or mud on the sensor, it is likely that the sensor is malfunctioning.

Notes when washing the vehicle

Do not apply intensive bursts of water or steam to the sensor area.

Doing so may result in the sensor malfunctioning.

Detection range of the sensors
Approximately 2.0 ft. (60 cm) Approximately 2.8 ft. (85 cm) Approximately 5.9 ft. (180 cm) The diagram shows the detection range of the sensors. Note that the sensors cannot detect obs ...

Rear view monitor system
The rear view monitor system assists the driver by displaying an image of the view behind the vehicle and guide lines while backing up, for example while parking. The screen illustrations used in t ...
