Toyota Sienna Service Manual: Slide door lock release motor

Toyota Sienna Service Manual / Engine hood / door / Slide door lock release motor

Inspection

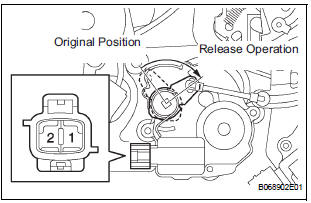

1. INSPECT SLIDE DOOR LOCK RELEASE MOTOR ASSEMBLY LH

INSPECT SLIDE DOOR LOCK RELEASE MOTOR ASSEMBLY LH

  1. Apply battery voltage and inspect operation of the motor.

OK

INSPECT SLIDE DOOR LOCK RELEASE MOTOR ASSEMBLY LH

If the result is not as specified, replace the motor assembly.

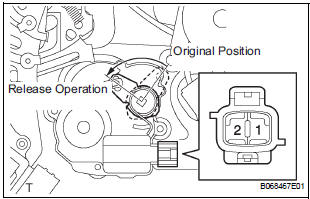

2. INSPECT SLIDE DOOR LOCK RELEASE MOTOR ASSEMBLY RH

INSPECT SLIDE DOOR LOCK RELEASE MOTOR ASSEMBLY RH

  1. Apply battery voltage and inspect operation of the motor.

OK

INSPECT SLIDE DOOR LOCK RELEASE MOTOR ASSEMBLY RH

If the result is not as specified, replace the motor assembly.

Installation
1. INSTALL SLIDE DOOR ROLLER ASSEMBLY UPPER Apply MP grease to the rotating areas of the roller. Install the roller with the 2 bolts. Torque: 13 N*m (130 kgf*cm, 10 ft.*lbf) 2. INSTALL ...
