Toyota Sienna Service Manual: System diagram

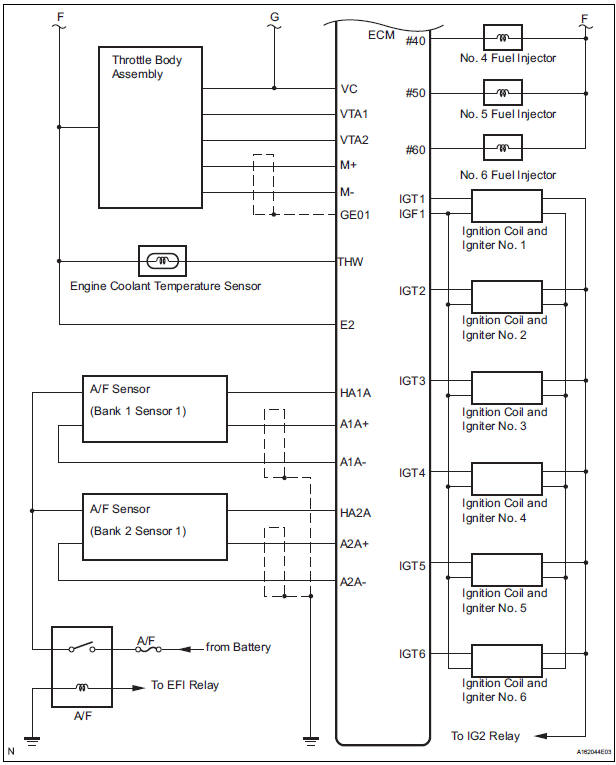

System diagram

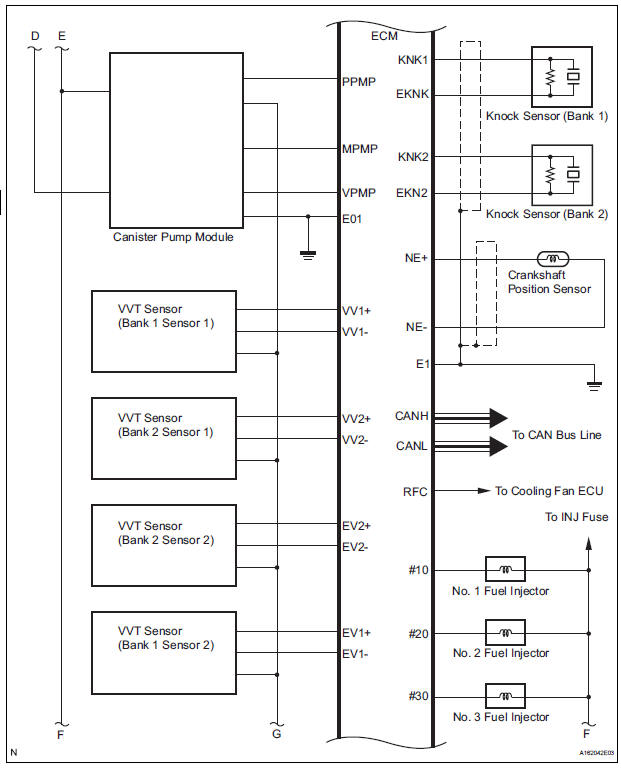

System diagram

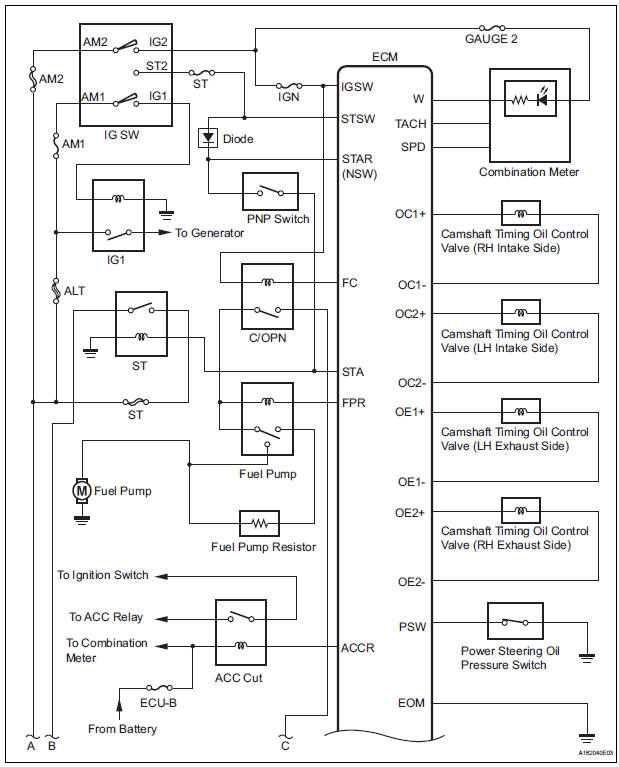

System diagram

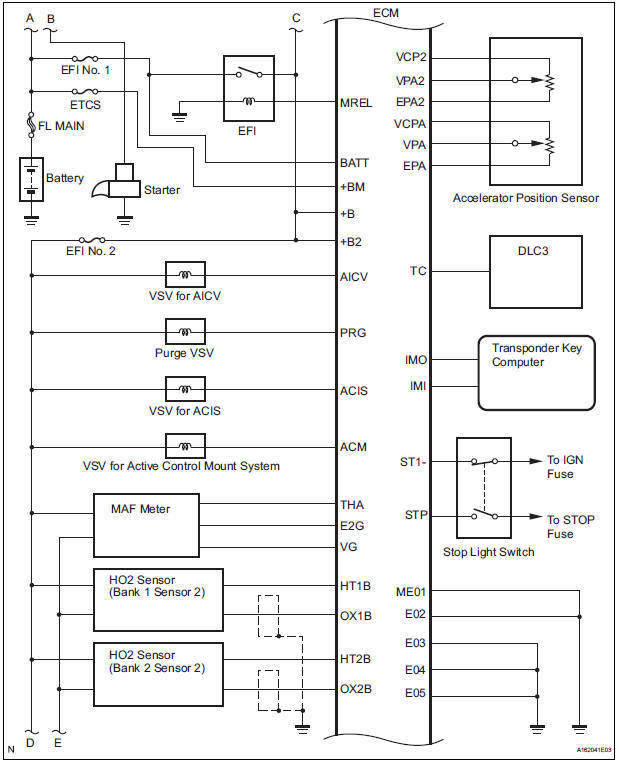

System diagram
