Toyota Sienna 2010-2024 Owners Manual: Taking out the spare tire

Toyota Sienna. Taking out the spare tire


  1. Slide the front passenger’s seat to the frontmost lock position and the right side second seat to the rearmost lock position so they will not interfere with the jack handle.

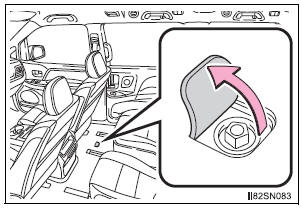

  2. Open the right side sliding door and you will find the flap on the floor. Pull back the flap to find the spare tire clamp bolt.

Toyota Sienna. Taking out the spare tire


  1. Attach the adapter socket over the spare tire clamp bolt.

    Connect the jack handle and the adapter socket. Turn the jack handle.

    The tire will be lowered completely to the ground.

Toyota Sienna. Taking out the spare tire


  1. Take the spare tire out from underneath the vehicle and remove the holding bracket.
WARNING

When storing the compact spare tire

Be careful not to catch fingers or other body parts between the compact spare tire and the body of the vehicle.
