Toyota Sienna Service Manual: Terminals of ECU

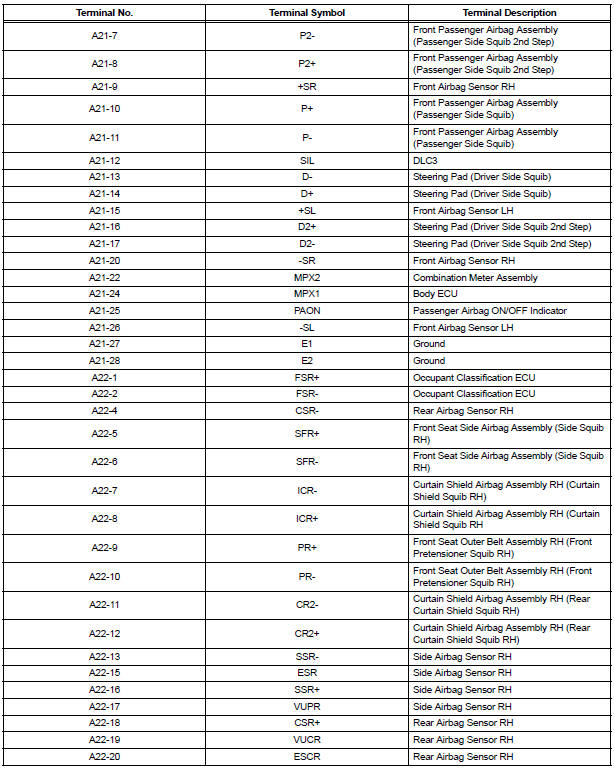

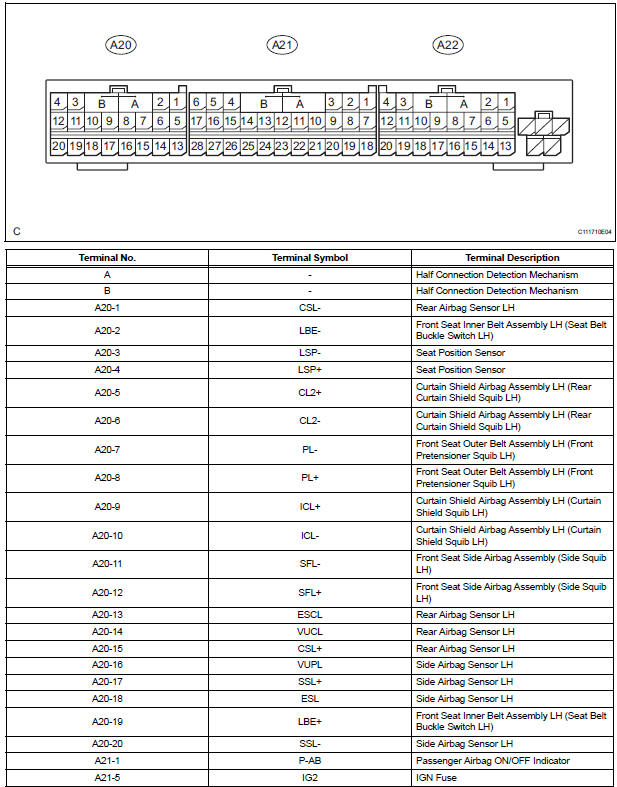

1. CENTER AIRBAG SENSOR ASSEMBLY (w/ Side Airbag)

CENTER AIRBAG SENSOR ASSEMBLY

CENTER AIRBAG SENSOR ASSEMBLY

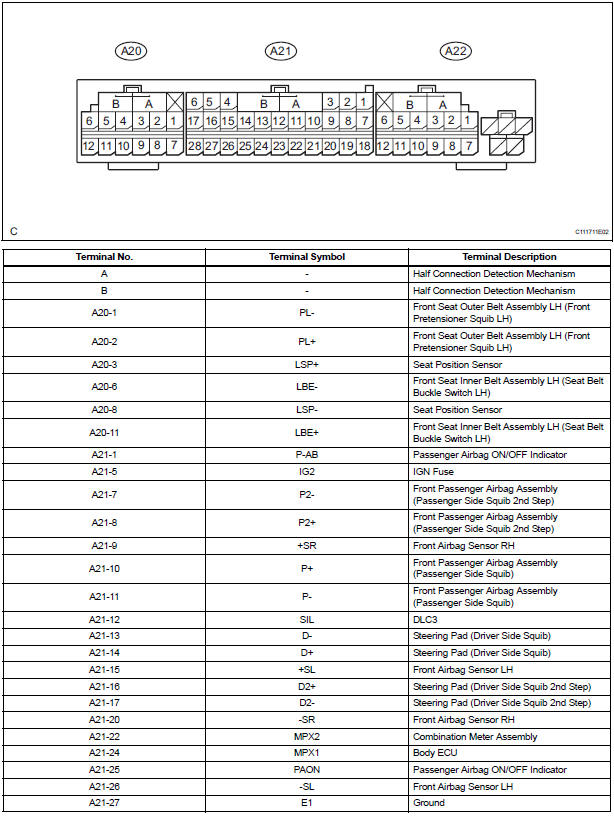

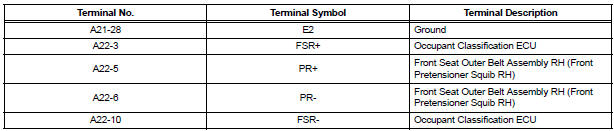

2. CENTER AIRBAG SENSOR ASSEMBLY (w/o Side Airbag)

CENTER AIRBAG SENSOR ASSEMBLY

CENTER AIRBAG SENSOR ASSEMBLY

Problem symptoms table
HINT: Proceed to the troubleshooting for each circuit in the table below. AIRBAG SYSTEM Symptom Suspected Area The SRS warning light goes off after the primary check, ...

Diagnosis system
1. CHECK DLC3  The ECU uses ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format. NOTICE: *: Before ...
