Toyota Sienna Service Manual: Terminals of ECU

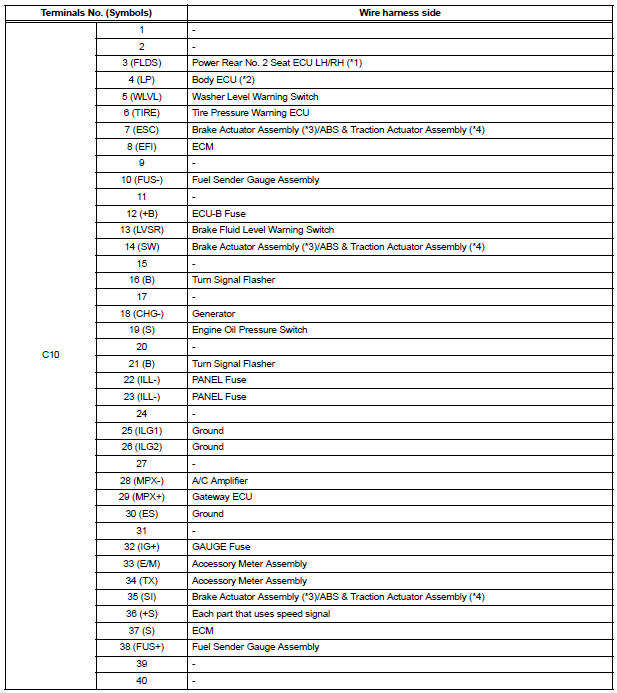

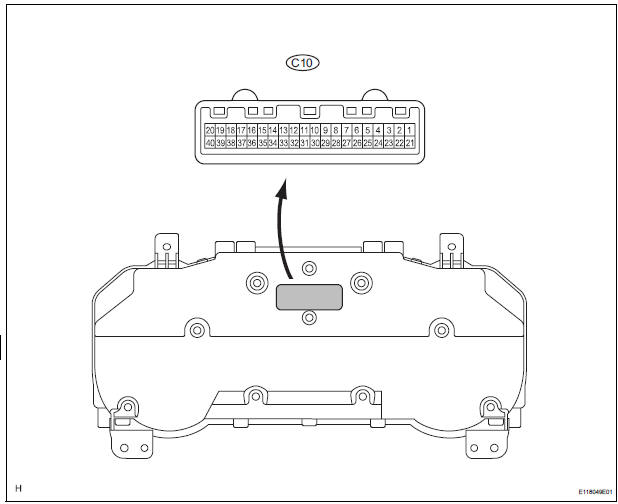

1. COMBINATION METER ASSEMBLY

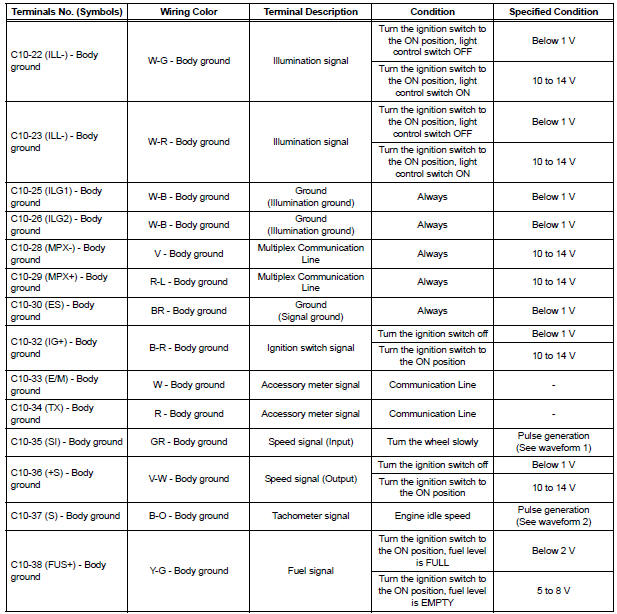

COMBINATION METER ASSEMBLY

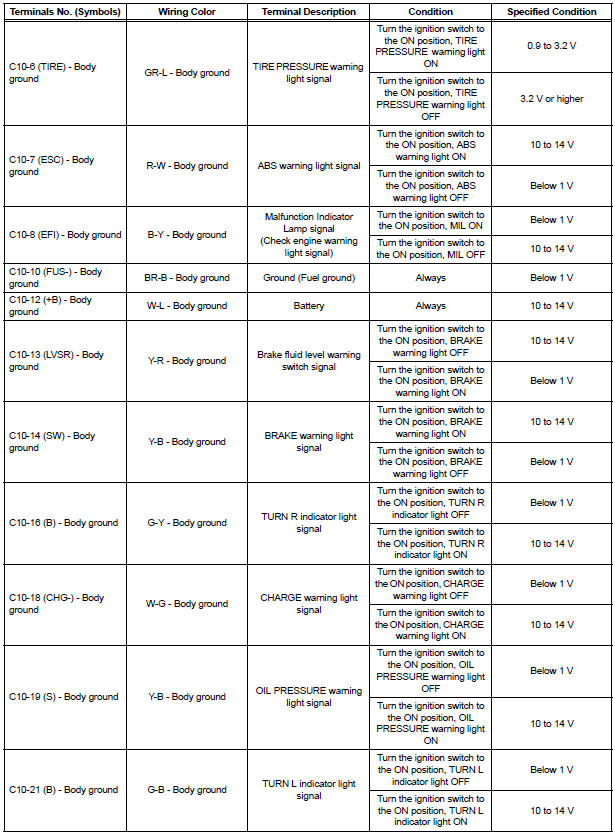

COMBINATION METER ASSEMBLY

COMBINATION METER ASSEMBLY

COMBINATION METER ASSEMBLY

*1: with Power Rear No. 2 Seat with Stowing Function
*2: with Theft Deterrent System

COMBINATION METER ASSEMBLY

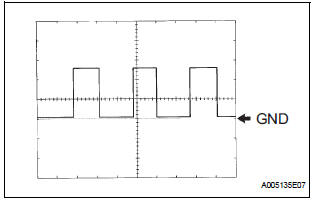

  1.  Waveform 1 (Reference) : Using an oscilloscope:

OK:

COMBINATION METER ASSEMBLY

HINT: As vehicle speed increases, the cycle of the signal waveform narrows.

COMBINATION METER ASSEMBLY

  1. Waveform 2 (Reference) : Using an oscilloscope:

OK:

COMBINATION METER ASSEMBLY

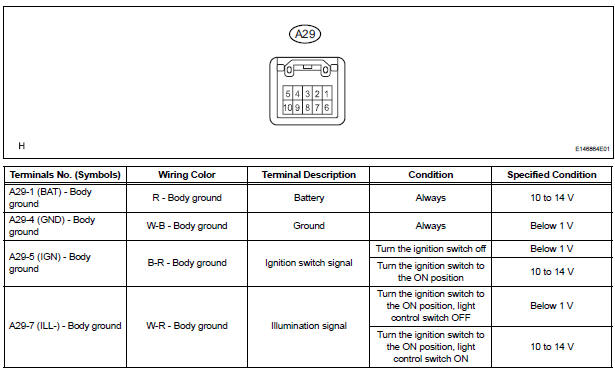

2. ACCESSORY METER ASSEMBLY

ACCESSORY METER ASSEMBLY

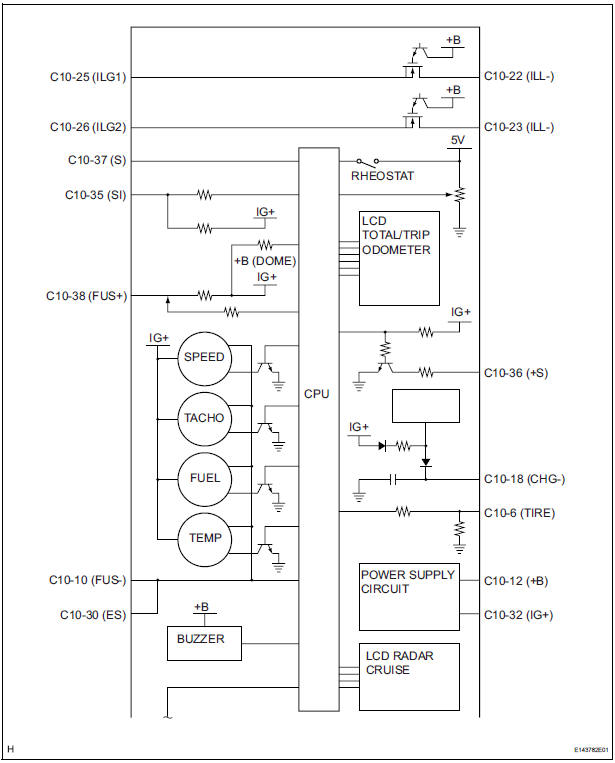

3. COMBINATION METER INNER CIRCUIT

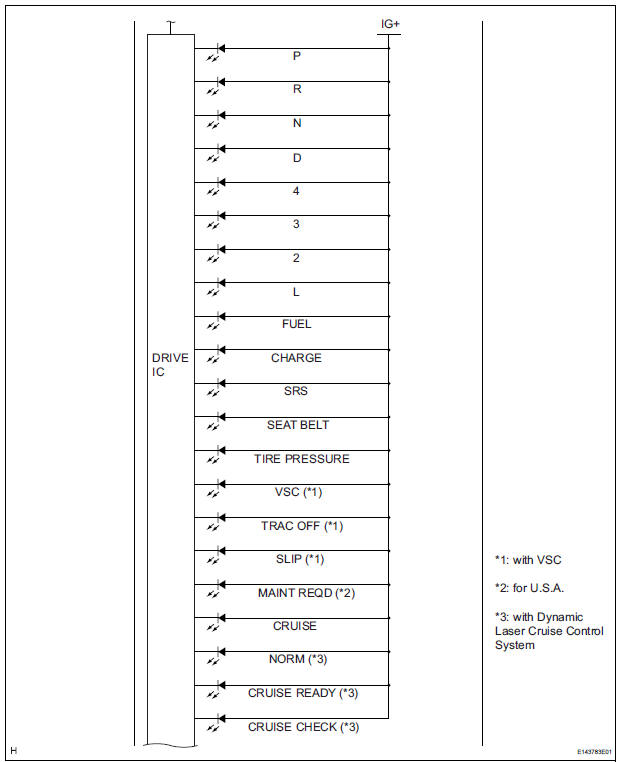

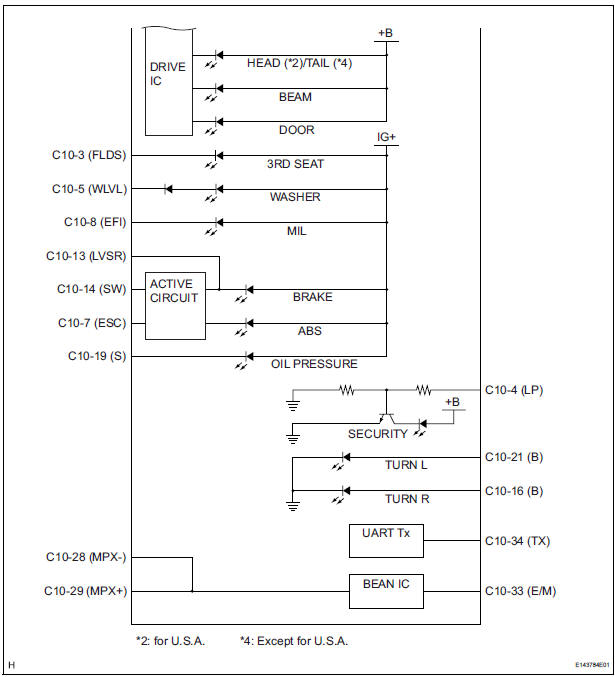

COMBINATION METER INNER CIRCUIT

 COMBINATION METER INNER CIRCUIT

 COMBINATION METER INNER CIRCUIT

 COMBINATION METER INNER CIRCUIT

*1: for Optitron Meter, Power Rear No. 2 Seat with Stowing Function
*2: for Optitron Meter, with Theft Deterrent System
*3: without VSC
*4: with VSC

Problem symptoms table
ENTIRE SYSTEM METER GAUGES WARNING LIGHTS INDICATOR LIGHTS BUZZER ACCESSORY METER ASSEMBLY ...

Diagnosis system
1. CHECK DLC3  The ECU uses the ISO 15765-4 for communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format. NOTICE: ...
