Toyota Sienna Service Manual: Terminals of ECU

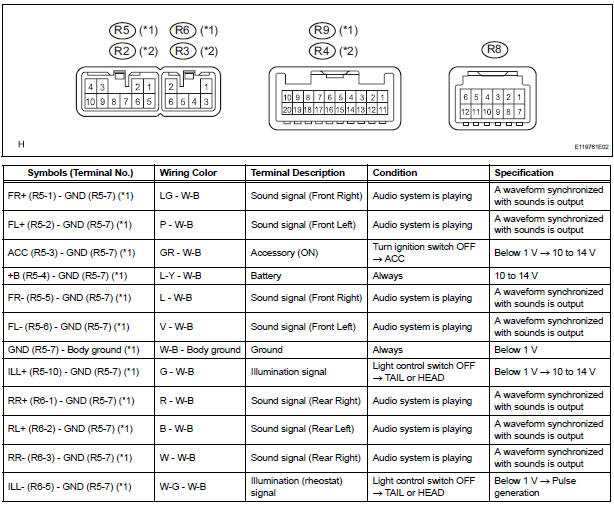

1. RADIO RECEIVER (10 SPEAKER SYSTEM)

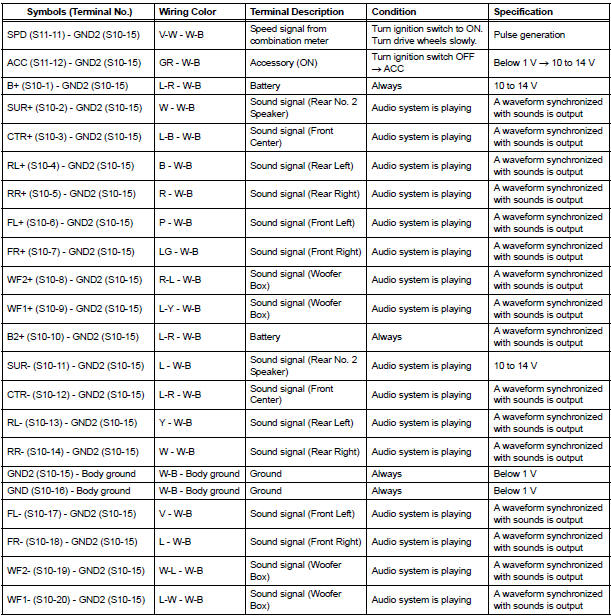

RADIO RECEIVER (10 SPEAKER SYSTEM)

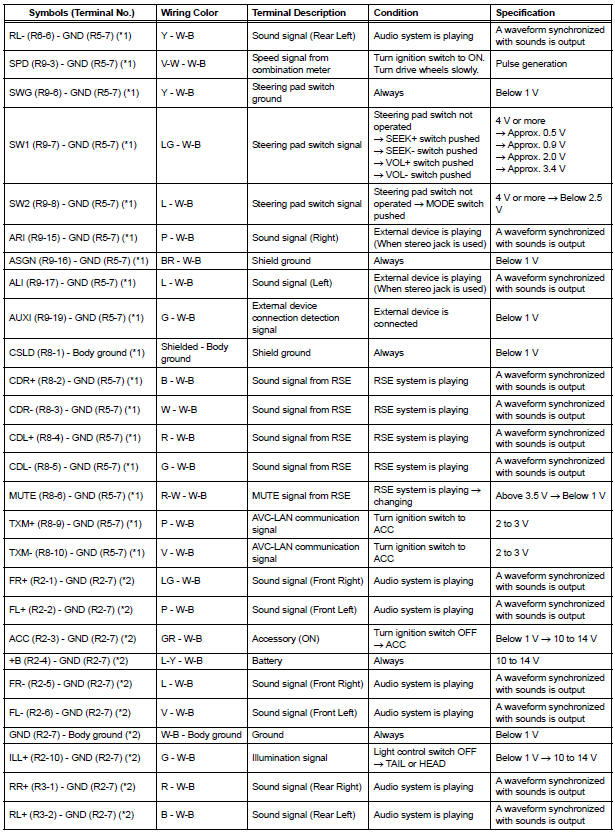

RADIO RECEIVER (10 SPEAKER SYSTEM)

*1: with Rear Seat Entertainment System

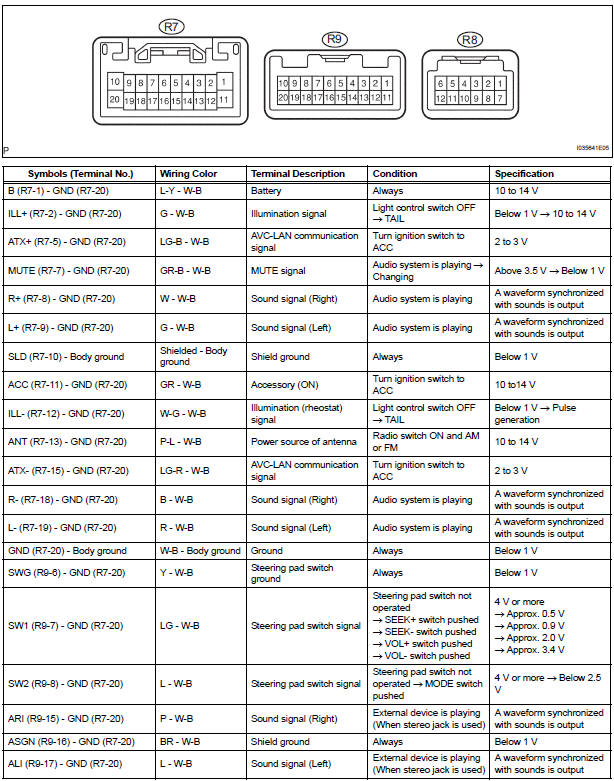

2. RADIO RECEIVER (6 SPEAKER SYSTEM)

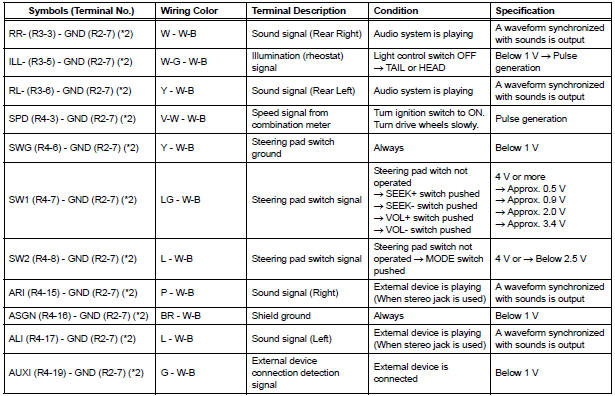

RADIO RECEIVER (6 SPEAKER SYSTEM)

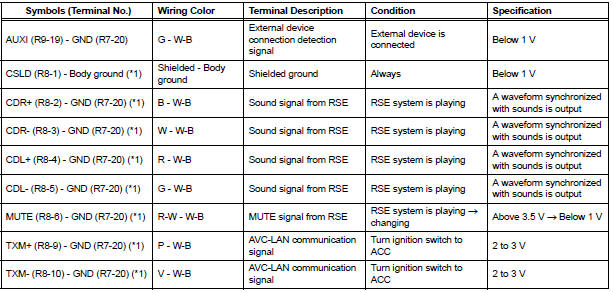

RADIO RECEIVER (6 SPEAKER SYSTEM)

RADIO RECEIVER (6 SPEAKER SYSTEM)

*1: with Rear Seat Entertainment System
*2: without Rear Seat Entertainment System

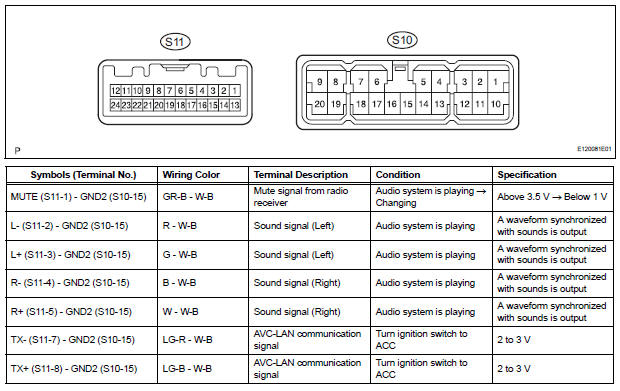

3. STEREO COMPONENT AMPLIFIER

STEREO COMPONENT AMPLIFIER

STEREO COMPONENT AMPLIFIER

4. TELEVISION DISPLAY ASSEMBLY

Problem symptoms table
HINT:  Before inspecting the suspected areas listed in the table below, check the fuse and relay.  Before inspecting the suspected areas listed in the table below, check for DTCs. ...

DTC check / clear
HINT: If the system cannot enter the diagnostic mode, inspect all AVC-LAN communication signals and repair or replace problem parts. 1. STARTING DIAGNOSTIC MODE  Turn the ignition swit ...
