Toyota Sienna Service Manual: Terminals of ECU

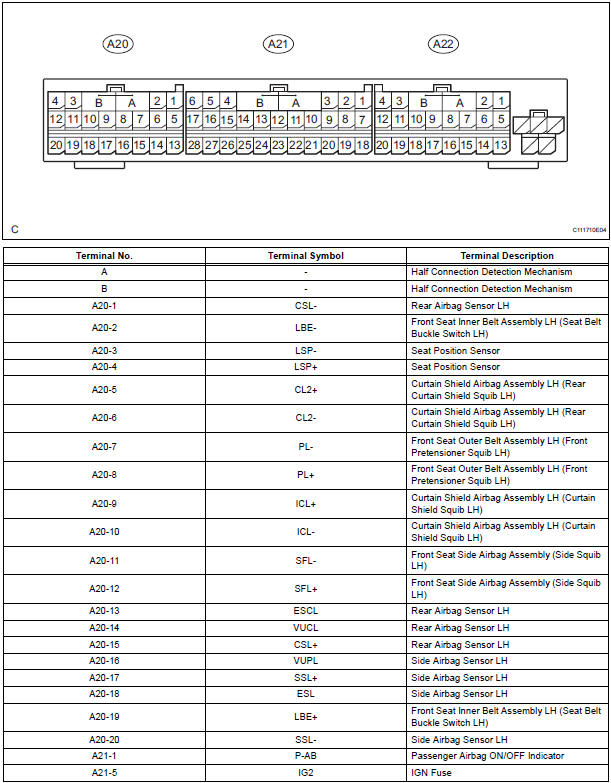

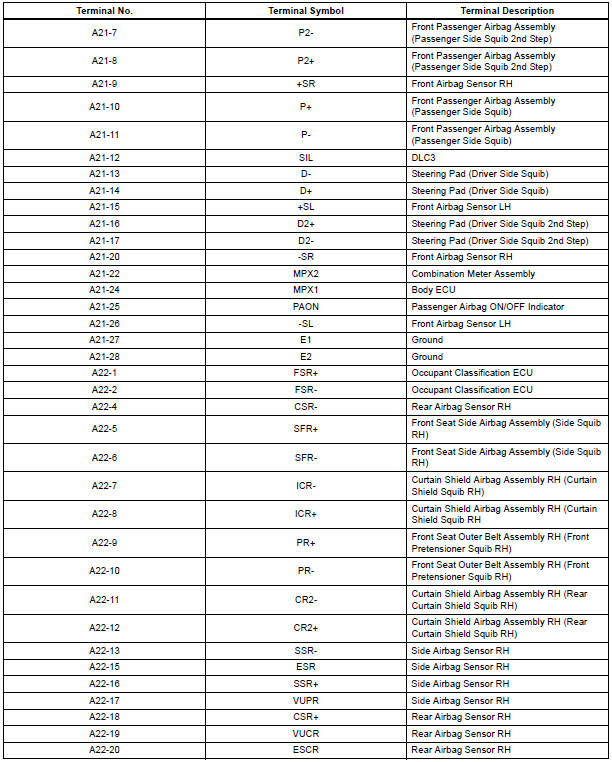

1. CENTER AIRBAG SENSOR ASSEMBLY (w/ Side Airbag)

CENTER AIRBAG SENSOR ASSEMBLY

CENTER AIRBAG SENSOR ASSEMBLY

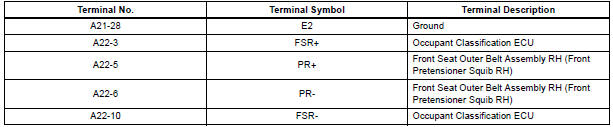

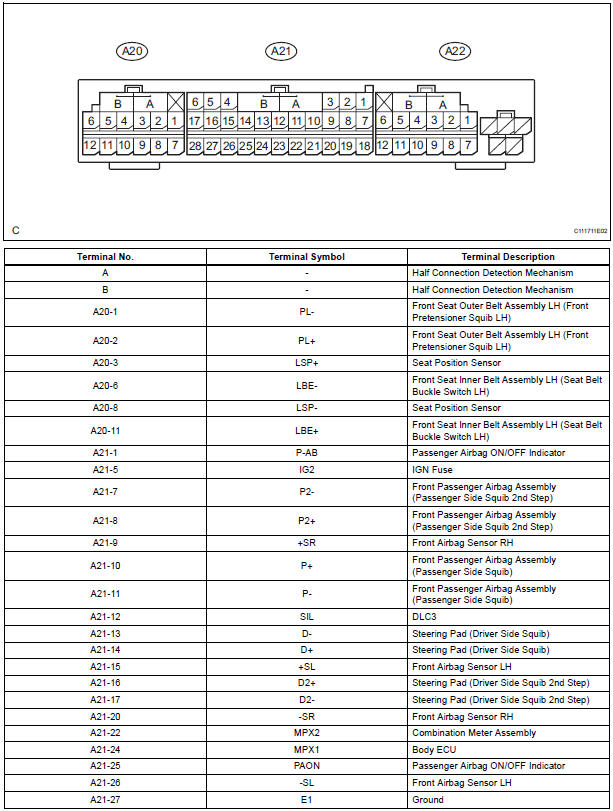

2. CENTER AIRBAG SENSOR ASSEMBLY (w/o Side Airbag)

CENTER AIRBAG SENSOR ASSEMBLY

CENTER AIRBAG SENSOR ASSEMBLY
