Toyota Sienna Service Manual: Terminals of ECU

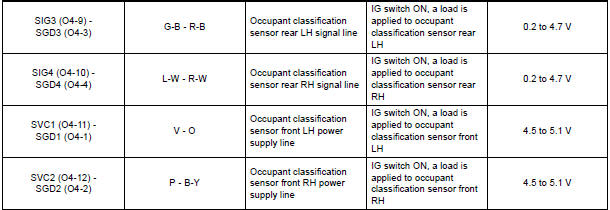

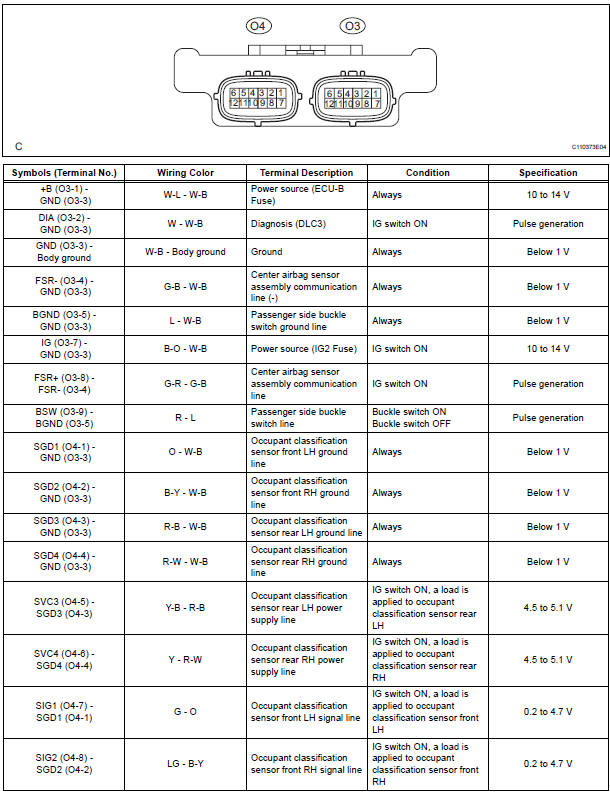

1. OCCUPANT CLASSIFICATION ECU

OCCUPANT CLASSIFICATION ECU

OCCUPANT CLASSIFICATION ECU

Problem symptoms table
HINT: Proceed to the troubleshooting for each circuit in the table below. Occupant Classification System Symptom Suspected area The front passenger seat condition differ ...

Diagnosis system
1. CHECK DLC3  The ECU uses ISO 15765-4 for communication. The terminal arrangement of the DLC3 complies with SAE J1962 and meets the ISO 15765-4 format. NOTICE: *: Before measuri ...
