Toyota Sienna Service Manual: Terminals of ECU

1. CHECK POWER BACK DOOR ECU

CHECK POWER BACK DOOR ECU

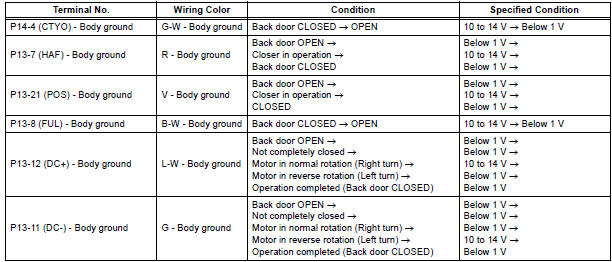

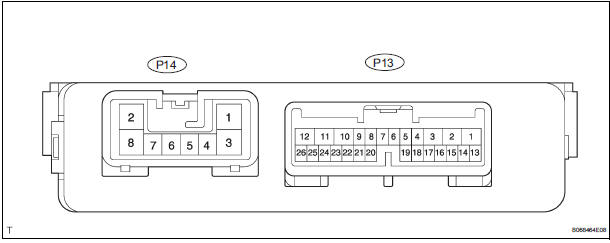

  1. Disconnect the P13 and P14 ECU connectors, and check the voltage and resistance of each terminal of the wire harness side connectors

CHECK POWER BACK DOOR ECU

If the result is not as specified, there may be a malfunction on the wire harness side.

  1.  Reconnect the ECU connectors, and check the voltage of each terminal of the connectors

CHECK POWER BACK DOOR ECU

If the result is not as specified, the ECU may have a malfunction.

Initialization
1. RESET  When the battery is reconnected: The back door is locked and therefore cannot be opened. Therefore, it is necessary to unlock the back door using the door control switch or ...

Diagnosis system
1. CHECK DLC3  The vehicle's ECU uses ISO 15765-4 for communication protocol. The terminal arrangement of the DLC3 complies with SAE J1962 and matches the ISO 15765-4 format. NOT ...
