Toyota Sienna 2010-2019 Owners Manual: Tire section names

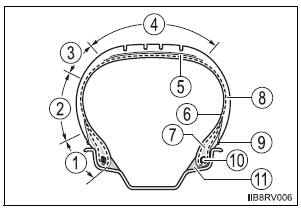

Toyota Sienna. Tire section names


  1. Bead
  2. Sidewall
  3. Shoulder
  4. Tread
  5. Belt
  6. Inner liner
  7. Reinforcing rubber
  8. Carcass
  9. Rim lines
  10. Bead wires
  11. Chafer
Tire size
Typical tire size information The illustration indicates typical tire size. Tire use (P = Passenger car, T = Temporary use) Section width (millimeters) Aspect ratio (tire height ...

Uniform Tire Quality Grading
This information has been prepared in accordance with regulations issued by the National Highway Traffic Safety Administration of the U.S. Department of Transportation. It provides the purchasers ...
