Toyota Sienna 2010-2024 Owners Manual: Tire size

Typical tire size information

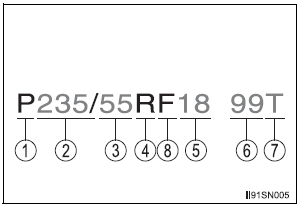

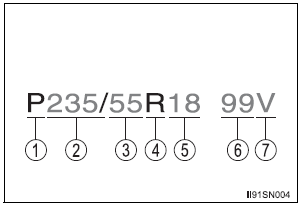

The illustration indicates typical tire size.

Toyota Sienna. Tire size


Toyota Sienna. Tire size


  1. Tire use (P = Passenger car, T = Temporary use)
  2. Section width (millimeters)
  3. Aspect ratio (tire height to section width)
  4. Tire construction code (R = Radial, D = Diagonal)
  5. Wheel diameter (inches)
  6. Load index (2 digits or 3 digits)
  7. Speed symbol (alphabet with one letter)
  8. Run-flat tire code

Tire dimensions

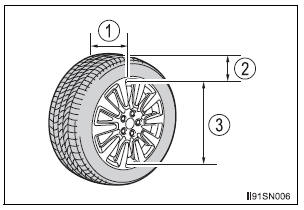

Toyota Sienna. Tire dimensions


  1. Section width
  2. Tire height
  3. Wheel diameter
Typical DOT and Tire Identification Number (TIN)
DOT symbol* Tire Identification Number (TIN) Tire manufacturer’s identification mark Tire size code Manufacturer’s optional tire type code (3 or 4 letters) Manufacturing week ...

Tire section names
Bead Sidewall Shoulder Tread Belt Inner liner Reinforcing rubber Carcass Rim lines Bead wires Chafer ...
