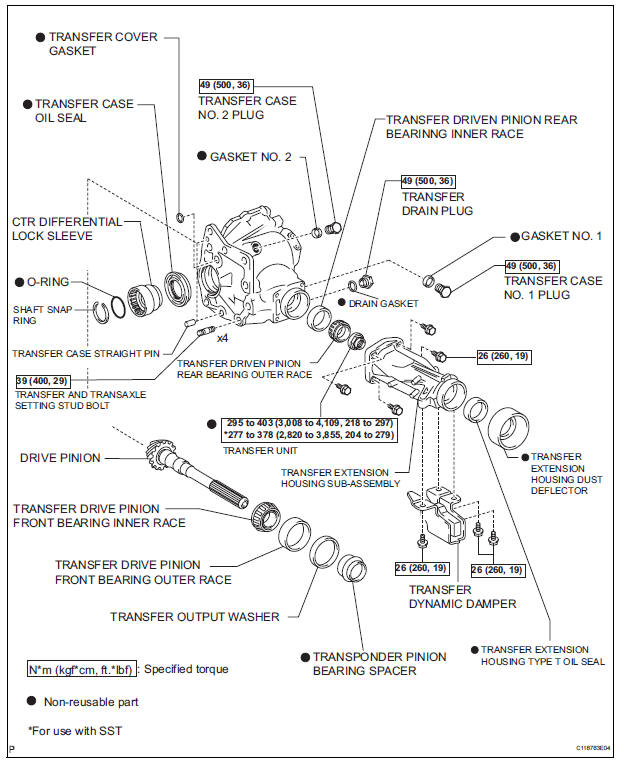

COMPONENTS

Transfer case oil seal

Reassembly
1. INSTALL TRANSFER DRIVEN PINION REAR BEARING (a) Using SST(s) and a press, install the transfer driven pinion rear bearing outer race to the transfer case. SST 09950-60010 (09951-00620), 09950-70 ...

Removal
1. REMOVE ENGINE AND TRANSAXLE HINT: (See page EM-26) 2. REMOVE AUTOMATIC TRANSMISSION WITH TRANSFER HINT: (See page AX-164) 3. REMOVE TRANSFER ASSEMBLY HINT: (See page TF-8) 4. REMOVE CTR D ...
