Toyota Sienna Service Manual: Transfer unit

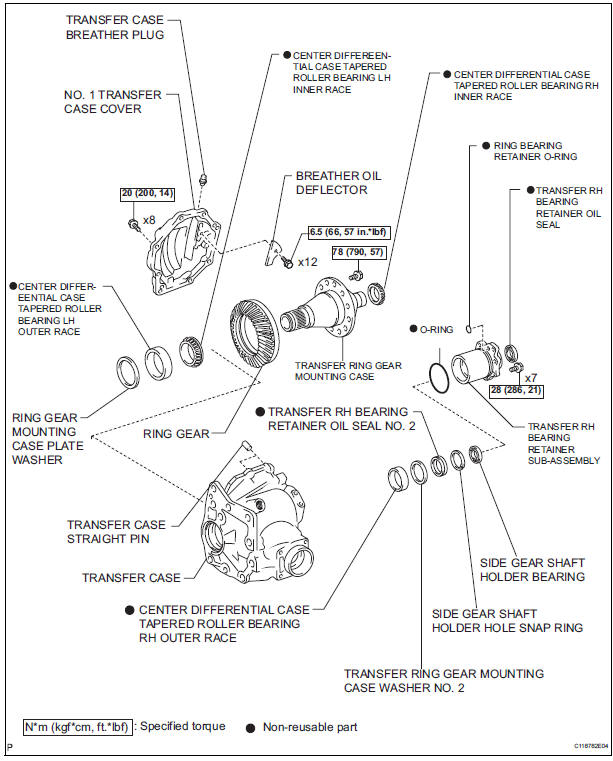

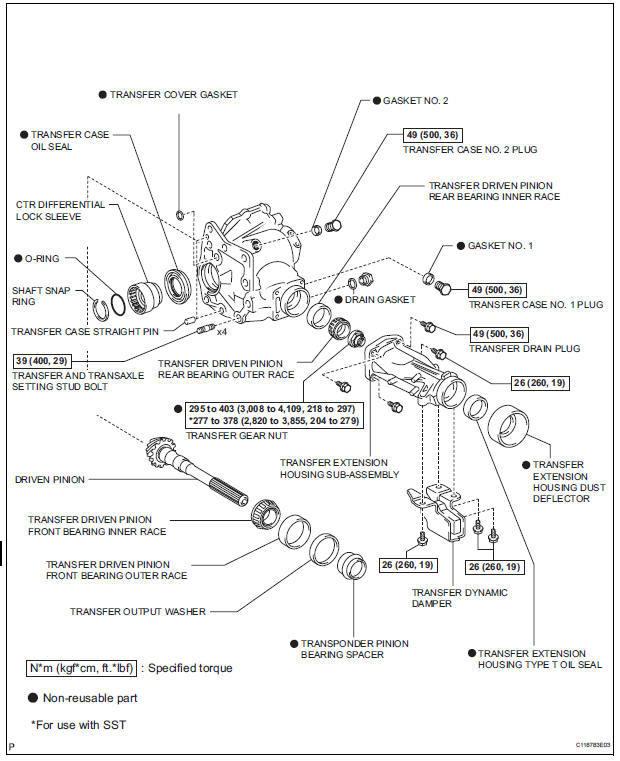

COMPONENTS

Transfer unit

Transfer unit

Installation
1. INSTALL TRANSFER ASSEMBLY (a) Apply sealant 1281 to the transaxle assembly and transfer assembly in continuous beaded from of 1.2 mm diameter as shown in the illustration. NOTICE: Wipe ...

Disassembly
1. REMOVE TRANSFER COVER GASKET (a) Remove the transfer gasket from the transfer assembly. 2. REMOVE TRANSFER CASE BREATHER PLUG (a) Using a screwdriver and a hammer, remove the transfer ...
