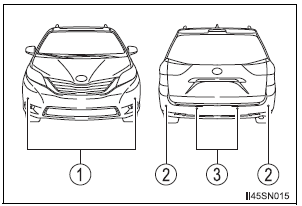

Toyota Sienna 2010-2020 Owners Manual: Types of sensors
- Front corner sensors (if equipped)
- Rear corner sensors
- Rear center sensors
Intuitive parking assist
The distance from your vehicle to nearby obstacles when parallel
parking or maneuvering into a garage is measured by the
sensors and communicated via the multi-information display,
the audio system ...
Intuitive parking assist switch
Turns the intuitive parking assist
on/off
When on, the indicator light comes
on and the buzzer sounds to inform
the driver that the system is operational. ...
