Toyota Sienna Service Manual: U151f automatic transaxle

Service data

U151f automatic transaxle

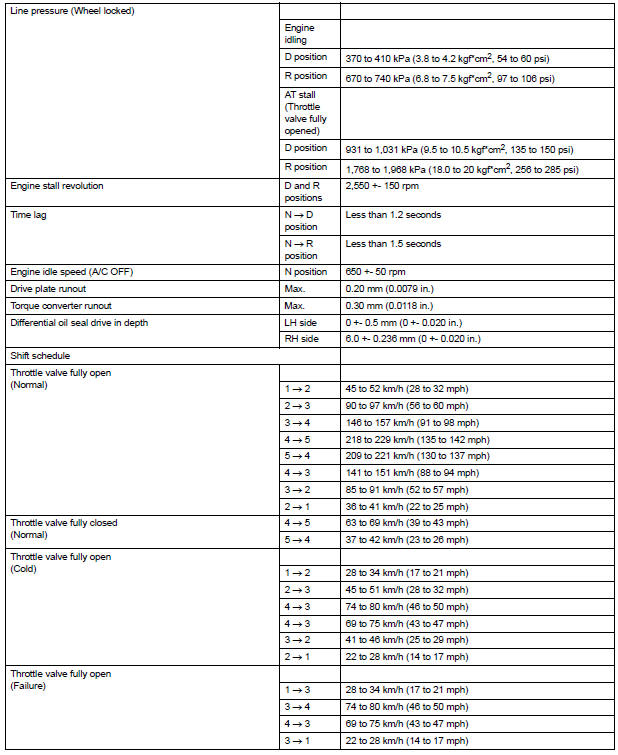

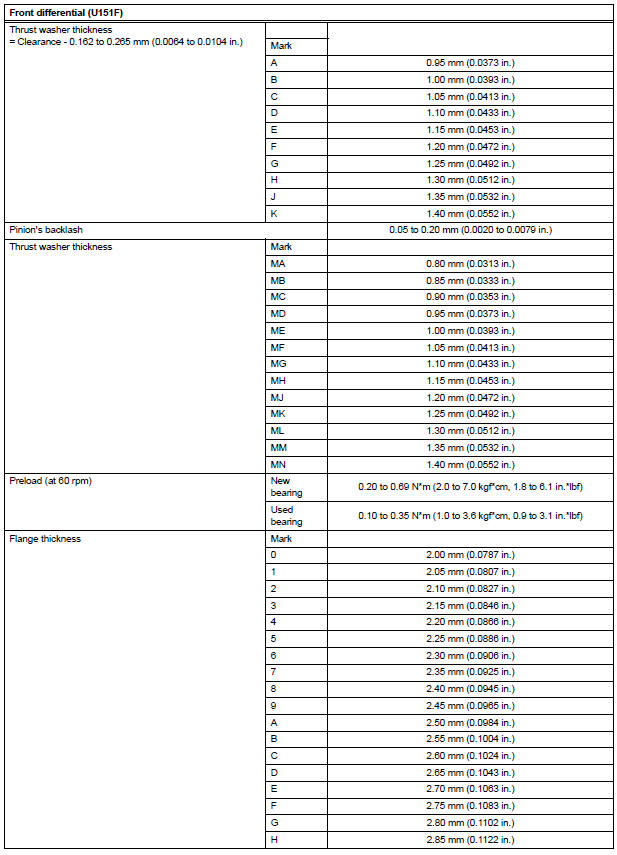

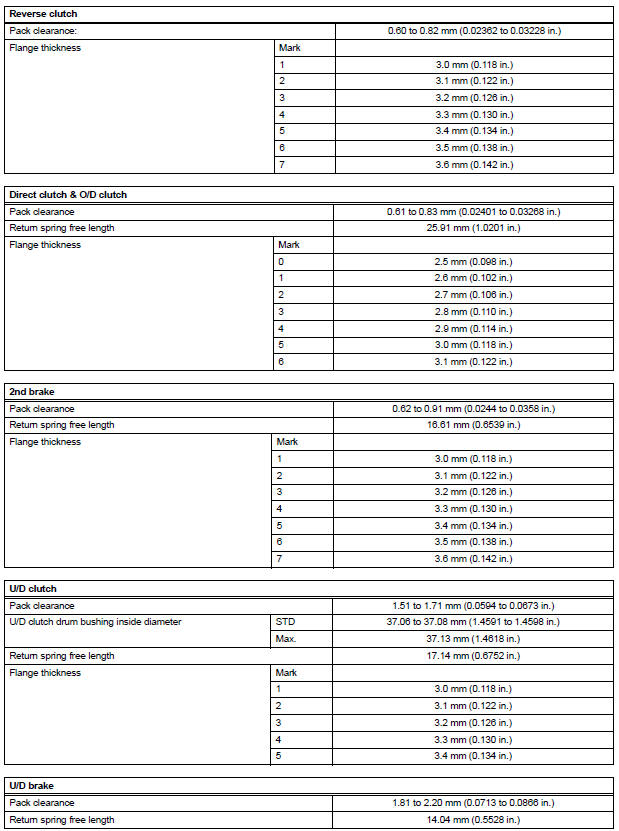

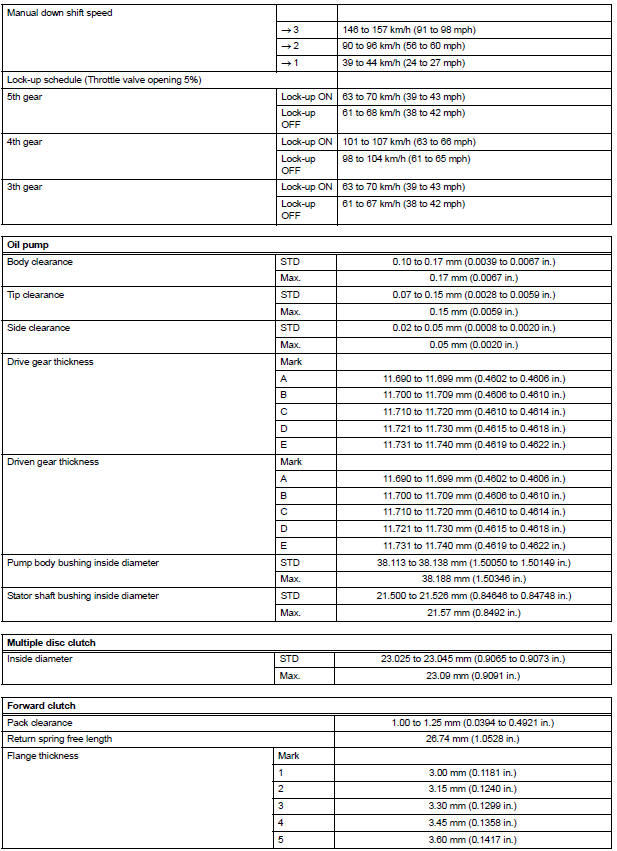

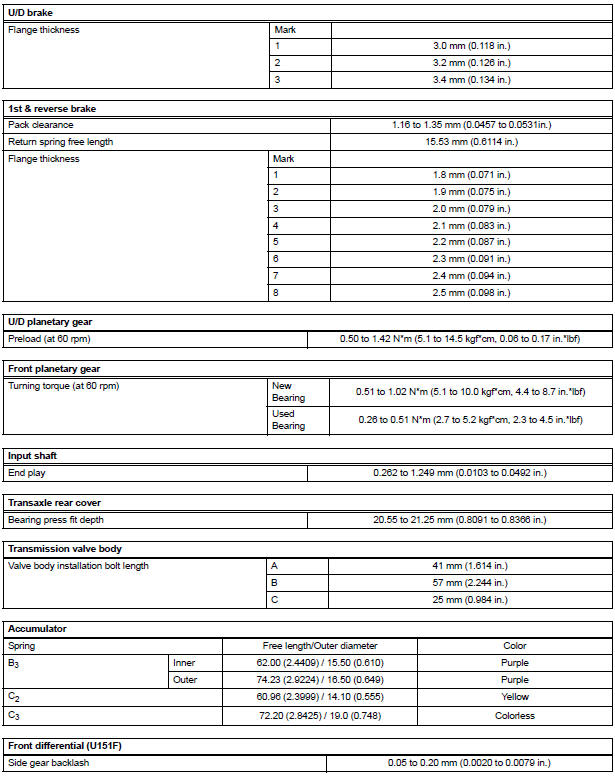

U151f automatic transaxle

U151f automatic transaxle

U151f automatic transaxle

U151f automatic transaxle

U151f automatic transaxle

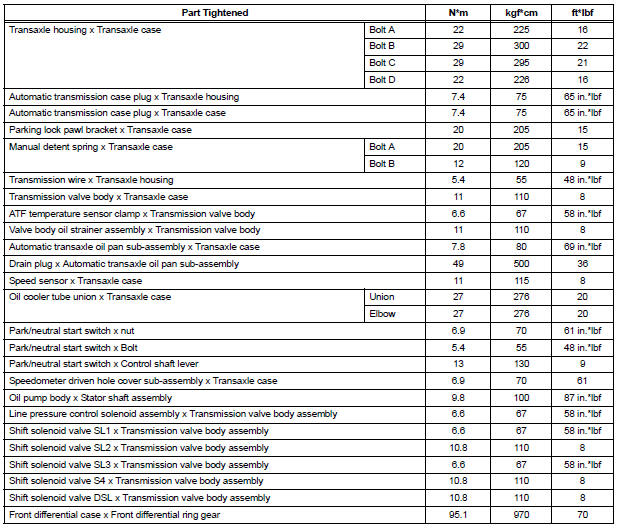

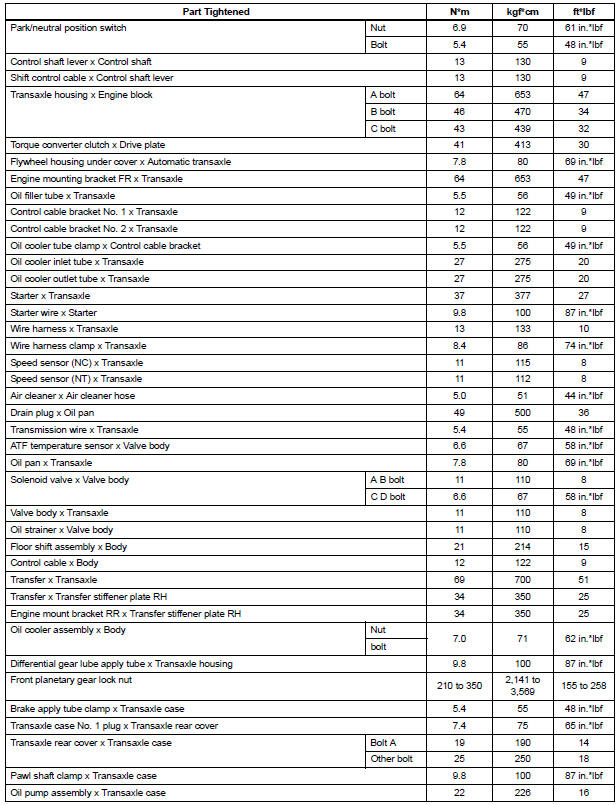

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

TORQUE SPECIFICATIONS

U151e automatic transaxle
SERVICE DATA TORQUE SPECIFICATIONS ...

Transfer
SERVICE DATA TORQUE SPECIFICATIONS PROPELLER SHAFT SERVICE DATA TORQUE SPECIFICATIONS DRIVE SHAFT SERVICE DATA TORQUE SPECIFICATIONS DIFFERENTIAL SERVICE DATA ...
