Toyota Sienna Service Manual: Vacuum switching valve

Toyota Sienna Service Manual / Engine / 2Gr-fe intake / Vacuum switching valve

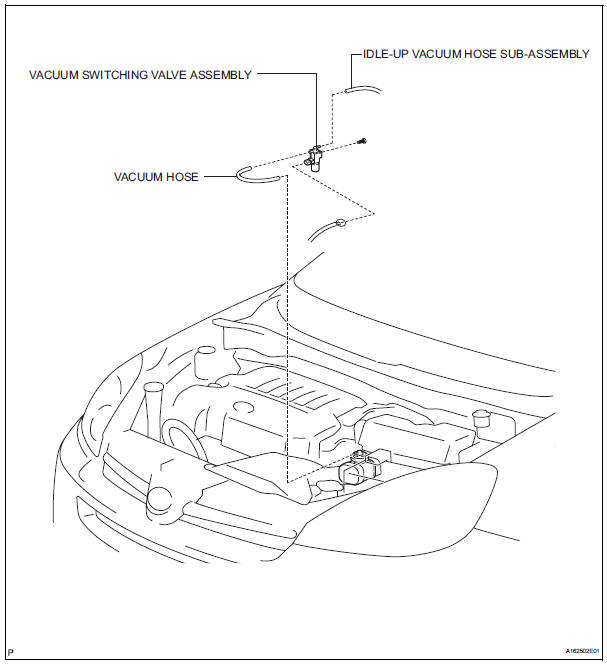

Components

Components

REMOVAL

1. REMOVE VACUUM SWITCHING VALVE ASSEMBLY

REMOVE VACUUM SWITCHING VALVE ASSEMBLY

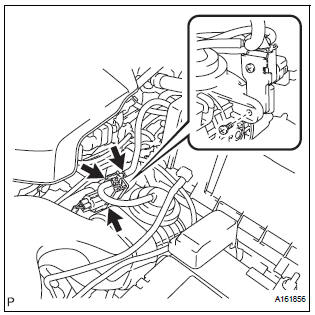

(a) Remove the 2 vacuum hoses and vacuum switching valve connector.

(b) Remove the screw and vacuum switching valve.

Vacuum tank
On-vehicle inspection 1. Inspect air cleaner cap sub-assembly (A) check that air flows from port b to port a. (B) apply 60 kpa (450 mm hg, 18 in. Hg) of vacuum to port b. Check that there is ...

Inspection
1. V (a) Inspect VSV operation. (1) Using an ohmmeter, measure the resistance according to the value(s) in the table below.V Standard resistance If the result is not as specified, replace t ...
