Toyota Sienna Service Manual: Vane pump

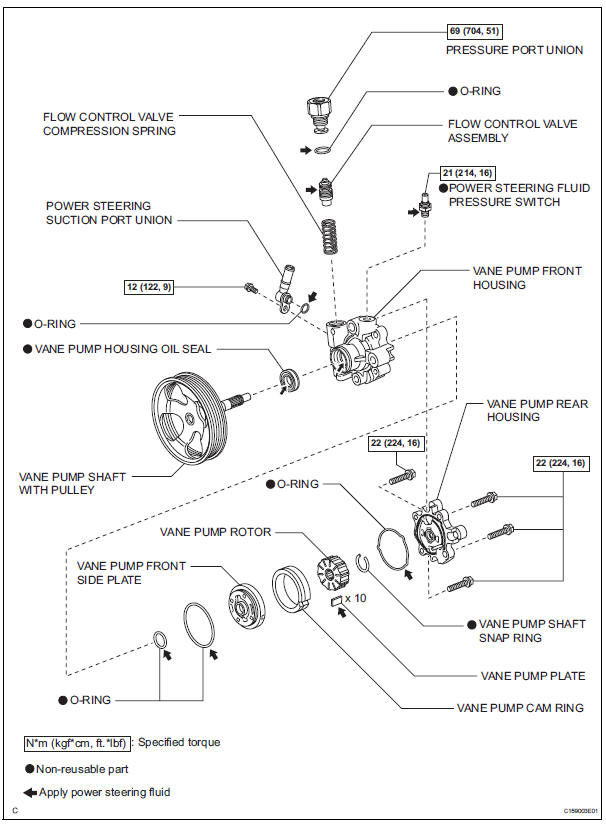

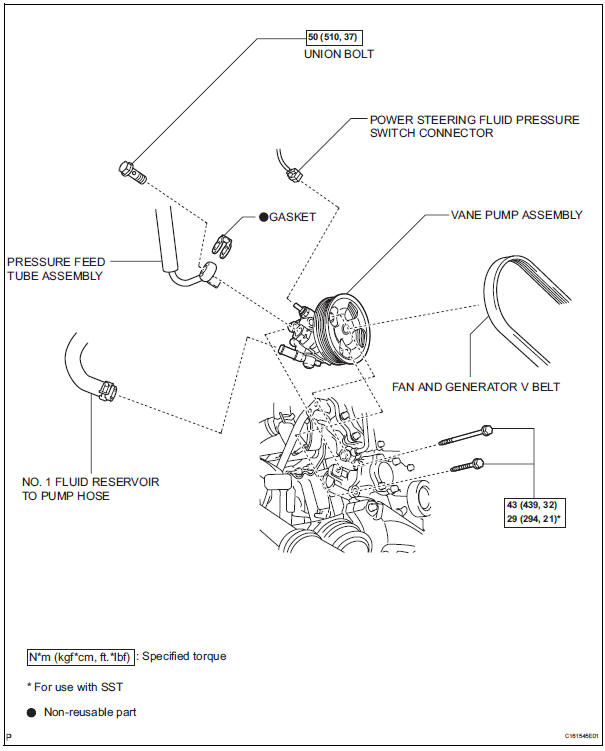

COMPONENTS

Vane pump

Vane pump

Power steering fluid
Bleeding 1. BLEED POWER STEERING SYSTEM (a) Check the fluid level (See page PS-2). (b) Jack up the front of the vehicle and support it with stands. (c) Turn the steering wheel. (1) With th ...

Removal
1. DRAIN POWER STEERING FLUID 2. REMOVE FRONT WHEEL RH 3. REMOVE FRONT FENDER APRON SEAL RH (See page EM-26) 4. REMOVE FAN AND GENERATOR V BELT (See page EM-6) 5. DISCONNECT NO. 1 FLUID RESERVOI ...
