Toyota Sienna Service Manual: Water pump

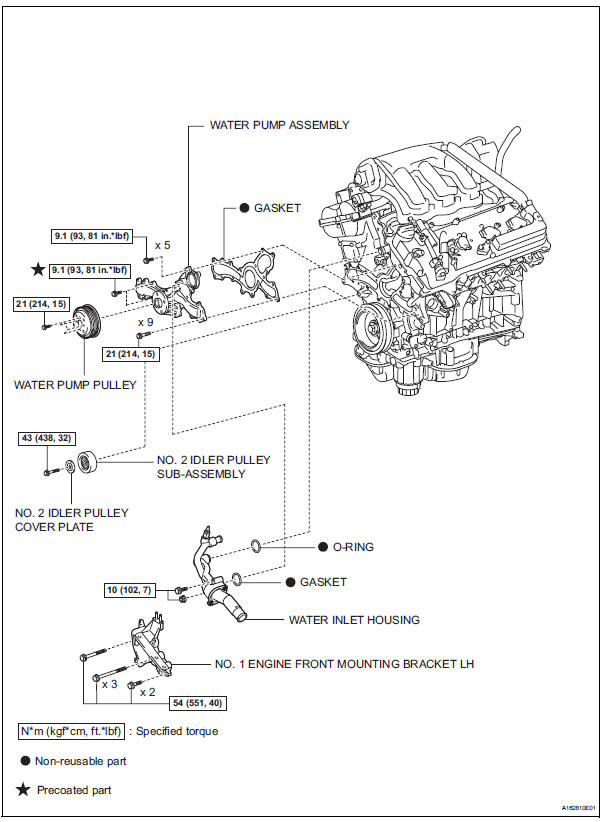

COMPONENTS

Water pump

Water pump

Coolant
Replacement 1. REMOVE NO. 1 ENGINE UNDER COVER (See page EM-26) 2. REMOVE V-BANK COVER SUB-ASSEMBLY (See page EM-28) 3. DRAIN ENGINE COOLANT (a) Loosen the radiator drain cock plug. HINT: ...

Removal

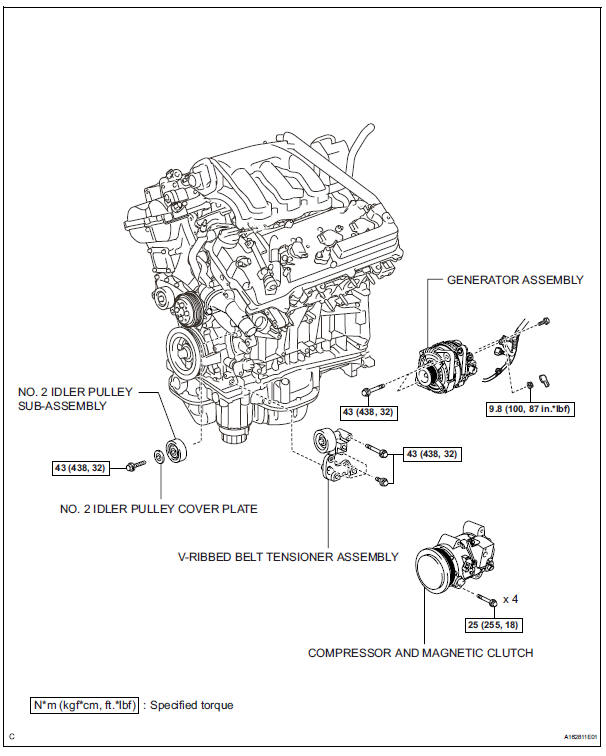

1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE HINT: See page EM-26 2. SECURE ENGINE (See page EM-37) 3. REMOVE GENERATOR ASSEMBLY (See page CH-17) 4. REMOVE COMPRESSOR AND MAGNETIC CLUTCH (See page A ...
