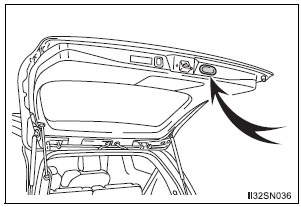

Lower the back door using the back door handle, and make sure to push the back door down from the outside to close it.
Ignition Switch Circuit
DESCRIPTION
When the ignition switch is turned to the ON position, battery positive
voltage is applied to terminal IG of
the ECU. When battery positive voltage is applied to terminal IG of the ECU
while the theft deterrent
system is operating, the warning stops.
WIRING DIAGRAM
INSPECTIO ...
Open or Short Circuit in ABS Motor Relay Circuit
DESCRIPTION
The ABS motor relay supplies power to the ABS pump motor. While the ABS &
TRAC & VSC are
activated, the ECU switches the ABS motor relay ON and operates the ABS pump
motor.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 PERFORM ACTIVE TEST USING INTELLIGENT TESTER (AB ...
For vehicles equipped with vehicle stability control (vsc) system
(a) Notices when using drum tester
Notices when using drum tester.
(1) When using a drum tester, be sure to start the
engine with the ignition switch OFF, and connect
SST to the terminals TS and CG of the DLC3
before the measurement in order to cancel the
VSC operation.
SST 09843-18040
...
