Toyota Sienna 2010-2018 Owners Manual: Wireless remote control
- Vehicles without a smart key system (type A)
- Locks all doors
- Unlocks all doors
- Sounds the alarm

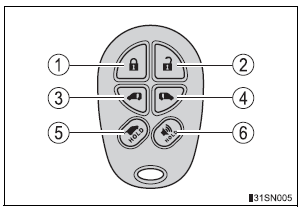

- Vehicles without a smart key system (type B)
- Locks all doors
- Unlocks all doors
- Opens and closes the left side power sliding door
- Opens and closes the right side power sliding door
- Opens and closes the power back door*
- Sounds the alarm
*: If equipped

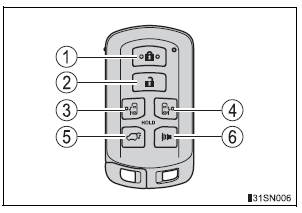

- Vehicles with a smart key system
- Locks all doors
- Unlocks all doors
- Opens and closes the left side power sliding door
- Opens and closes the right side power sliding door
- Opens and closes the power back door
- Sounds the alarm
The keys
The following keys are provided with the vehicle.
Vehicles without a smart key system
Master keys (black)
Valet key (gray)
Key number plate
Vehicles with a smart key system
...
Using the mechanical key (vehicles with a smart key system)
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the ke ...
