BMW 3 Series 2018-2023 Owners Manual: Concept, General information, Safety information
Concept
The system helps to avoid imminent side collisions.
General information
.png)

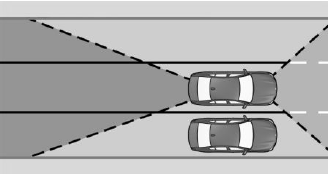

Four radar sensors in the bumpers monitor the space next to the vehicle from a minimum speed of up to approx. 130 mph/210 km/h.
The minimum speed is country-specific and is displayed in the menu for the intelligent Safety systems.
The front camera determines the lane marking positions.
If, for instance another vehicle is detected next to the vehicle and if there is a risk of collision with this vehicle, the system helps avoid the collision.
For this purpose, the system issues a warning with a flashing LED in the exterior mirror and a vibrating steering wheel. If necessary, the system will carry out an active steering intervention.
Safety information
Warning The system cannot serve as a substitute for the driver's personal judgment in assessing visibility and traffic situation. There is a risk of accident.
Adjust driving style to traffic conditions. Watch traffic closely and actively intervene where appropriate.
Warning Indicators and warnings cannot serve as a substitute for the driver's personal judgment. Due to its limits, the system may not issue warnings or reactions, or these may be issued late or in a manner that is not consistent with their normal use. There is a risk of accident. Adjust driving style to traffic conditions. Watch traffic closely and actively intervene where appropriate.
Functional requirements
The camera must detect the lane markings for the side collision mitigation with steering intervention to be active.
Overview
Button in the vehicle
Intelligent Safety
Radar sensors
The radar sensors are located in the bumpers.
Front bumper.
Rear bumper.
Always keep the bumper in the area of the radar
sensors clean and un ...
