DESCRIPTION
The multiplex network body ECU controls power supplied to the power window master switch and each regulator switch continuously for 45 seconds after the ignition switch is turned OFF unless the front doors have been opened, so that the power window can be operated during this period.
However, if either front door is opened or if a signal from any of the front door courtesy lamp switches is input to the ECU during 45 seconds, or if 45 seconds pass with nothing being done, the multiplex network body ECU will stop supplying power, thus disabling power window operation disabled.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 CHECK CHECK OPERATION FUNCTION AFTER IGNITION SWITCH IS TURNED OFF
2 READ VALUE OF INTELLIGENT TESTER
Standard (Multiplex network body ECU)
Item |
Measurement Item/Display (Range) |
Normal Condition |
Diagnostic Note |
D DOR CTY SW | Driver side door courtesy switch signal/ ON or OFF | ON: Driver side door is open OFF: Driver side door is closed |
- |
P DOR CTY SW | Passenger side door courtesy switch signal/ ON or OFF | ON: Passenger side door is open OFF: Passenger side door is closed |
- |

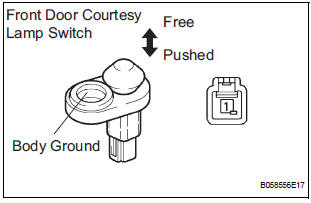

3 INSPECT DOOR COURTESY SWITCH ASSEMBLY
Standard resistance

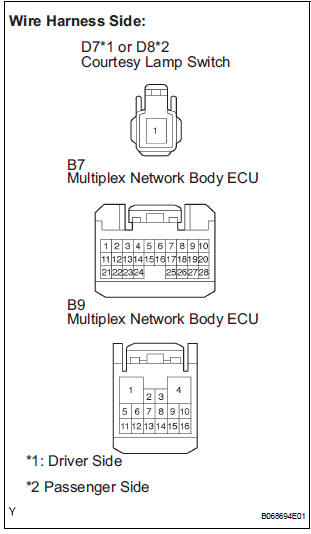

4 CHECK WIRE HARNESS (FRONT DOOR COURTESY SWITCH - MULTIPLEX NETWORK BODY ECU)
Standard resistance
REPLACE DRIVER SIDE JUNCTION BLOCK ASSEMBLY (MULTIPLEX NETWORK BODY ECU)
Eject Error/ Elevator Error/ Clamp Error/ Eject Error/ Elevator Error/ Clamp
Error
DTC 62-45 Eject Error
DTC 62-51 Elevator Error
DTC 62-52 Clamp Error
DTC 63-45 Eject Error
DTC 63-51 Elevator Error
DTC 63-52 Clamp Error
DESCRIPTION
DTC No.
DTC Detecting Condition
Trouble Area
62-45
Disc cannot be ejected.
Radio receiver
62-5 ...
Sound Signal Circuit between Video Terminal and Television Display
DESCRIPTION
This is the sound signal circuit from the video (video adapter) terminal to
the television display assembly.
WIRING DIAGRAM
INSPECTION PROCEDURE
1 CHECK HARNESS AND CONNECTOR (TELEVISION DISPLAY ASSEMBLY - VIDEO
TERMINAL)
Disconnect the connectors from the video (vide ...
Installation
1. INSTALL TRANSFER RH BEARING RETAINER OIL SEAL
(a) Using SST, install a new transfer RH bearing
retainer oil seal to the transfer case at the position
as show in the illustration.
SST 09223-46011
NOTICE:
Do not install the oil seal obliquely
(b) Apply small amount of MP grease to the oi ...
