BMW 3 Series 2018-2022 Owners Manual: Technical data

General information

The technical data and specifications in the Owner's Manual are used as guidance values.

The vehicle-specific data can deviate from this, for instance due to the selected special equipment, country version or country-specific measurement method. Detailed values can be found in the approval documents, on labels on the vehicle or can be obtained from a dealer's service center or another qualified service center or repair shop.

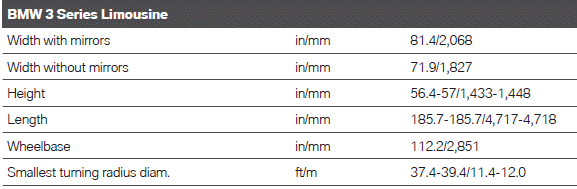

Dimensions

The dimensions can vary depending on the model version, equipment or country-specific measurement method.

The specified heights do not take into account attached parts, for instance a roof antenna, roof racks or spoiler. The heights can deviate, for instance due to the selected special equipment, tires, load and chassis version.

Technical data

Weights

Technical data

Capacities

Technical data



Vehicle care
Vehicle care products General information BMW recommends using vehicle care and cleaning products from BMW. Suitable care products are available from a dealer's service center or another qualified ser ...
