BMW 3 Series 2018-2022 Owners Manual: Trunk lid

General information

To avoid locking the vehicle key in the vehicle, do not place the remote control in the cargo area.

Depending on the vehicle equipment and country version, it is also possible to have the doors unlocked. To perform settings.

The trunk lid cannot be opened when the vehicle is in valet parking mode.

Safety information

Warning Body parts can be jammed when operating the trunk lid. There is a risk of injury. Make sure that the area of movement of the trunk lid is clear during opening and closing.

NOTICE

During opening, the trunk lid pivots back and up. There is a risk of damage to property. Make sure that the area of movement of the trunk lid is clear during opening and closing.

Without automatic tailgate operation: opening and closing

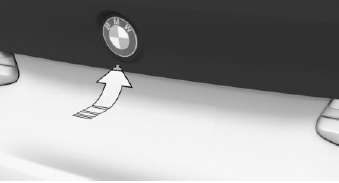

Opening from the outside

Opening and closing

Opening from the inside

Press or pull the button in the storage compartment of the driver's door.

Closing

Opening and closing

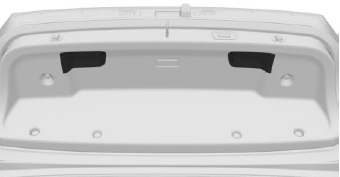

Grasp the recess grips and pull the trunk lid down.

With automatic tailgate operation: opening and closing

Opening

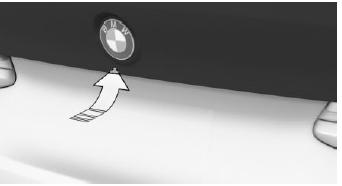

From the outside

Opening and closing

From the inside

Press the button in the storage compartment of the driver's door.

Interruption of the opening procedure

The opening operation is interrupted:

Closing

From the outside

With Comfort Access:

From the inside

Pull and hold the button in the storage compartmenr of the driver's door.

The vehicle key must be located inside the vehicle for this function.

An acoustic signal sounds before the trunk lid is closed.

Interruption of the closing procedure

The closing procedure is interrupted in the following situations:

Malfunction

In the event of an electrical malfunction, operate the unlocked trunk lid manually with a slow and smooth motion.

Trunk emergency unlocking

Opening and closing

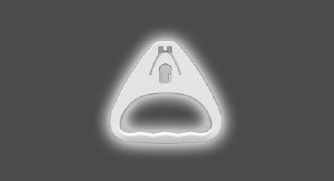

Pull the handle inside the cargo area.

The trunk lid unlocks.
