BMW 3 Series 2018-2022 Owners Manual: Widgets in the instrument cluster

BMW 3 Series 2018-2022 Owners Manual / Displays / Widgets in the instrument cluster

Concept

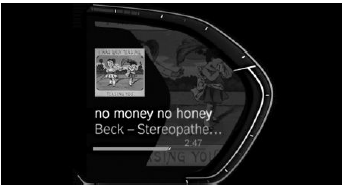

Displays for specific functions can be displayed in the tachometer in the instrument cluster.

The following displays can be selected:

Selecting

Displays

Continue to press the button on the turn signal lever until the desired widget is selected.

Display

Displays

Efficiency display

Concept

Information about driving style and consumption can be displayed in the form of a consumption display as a widget in the instrument cluster, for example.

General information

Depending on the activated driving mode, different information will be displayed:

Displays

Average consumption

The average consumption indicates the fuel consumption when driving a specific route.

Current consumption

The current consumption displays the current consumption of fuel. Check whether you are currently driving in an efficient and environmentally-friendly manner.

Energy recovery

During energy recovery, the kinetic energy of the vehicle is converted into electric energy during coasting. The vehicle battery is partially charged and fuel consumption can be reduced.

ECO PRO bonus range

In the ECO PRO driving mode, the yielded extension of the range as a result of fuel-efficient driving is displayed as ECO PRO bonus range.

Instrument cluster
Concept The instrument cluster is a variable display. When you change to a different program via Driving Dynamics Control, the displays in the instrument cluster adapt to the respective driving mode. ...

Check Control
Concept The Check Control system monitors functions in the vehicle and notifies you of malfunctions in the monitored systems. General information A Check Control message is displayed as a combination ...
