Toyota Sienna Service Manual: Ambient temperature sensor

Toyota Sienna Service Manual / Air conditioning / Ambient temperature sensor

ON-VEHICLE INSPECTION

1. INSPECT A/C AMBIENT TEMPERATURE SENSOR

 INSPECT A/C AMBIENT TEMPERATURE SENSOR

(a) Remove the A/C ambient temperature sensor.

(b) Disconnect the connector from A/C ambient temperature sensor.

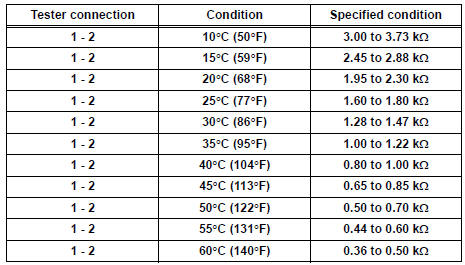

(c) Measure the resistance according to the value(s) in the table below.

Standard resistance

NOTICE:

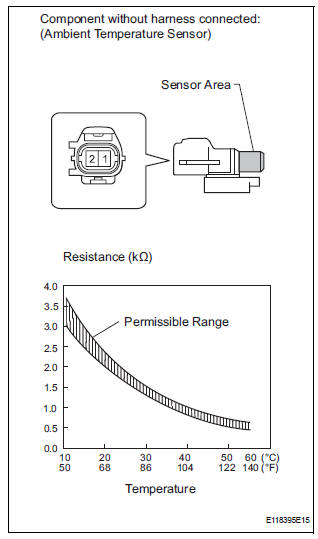

HINT: As the temperature increases, the resistance decreases (see the graph).

If the resistance is not as specified, replace the A/C ambient temperature sensor.

Room temperature sensor (for rear air conditioning system)
ON-VEHICLE INSPECTION 1. INSPECT REAR A/C ROOM TEMPERATURE SENSOR (a) Remove the rear A/C room temperature sensor. (b) Disconnect the connector from the rear A/C room temperature sensor. ...

Evaporator temperature sensor
ON-VEHICLE INSPECTION 1. INSPECT A/C EVAPORATOR TEMPERATURE SENSOR (a) Remove the A/C evaporator temperature sensor (A/ C thermistor). (b) Disconnect the connector from the A/C evaporator t ...
